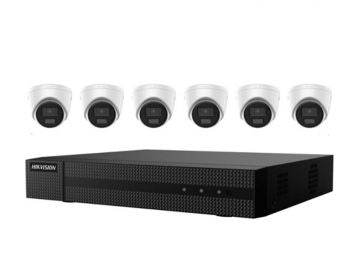

Hikvision EKI-K82T46C 8-Channel 8MP PoE NVR with 2TB HDD & 6 4MP Color Night Vision Turret Cameras Kit
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Features:
-Record from and Manage up to 8 Cameras
-Up to 8MP Recording Resolution
-2TB Preinstalled HDD
-H.265+/H.265/H.264+/H.264/MPEG-4 Codecs
-8 x PoE Ports
-6 x 4MP ColorVu Turret Cameras Included
-Color Recording at Night up to 98'
-96.5° Horizontal Field of View
-HDMI & VGA Video Outputs
-IP67-Rated Cameras with Microphones
Specification
| Channels | 8 |
| Resolution | Up to 8 MP |
| Two-Way Audio | 1-Channel, RCA (2 V p-p, 1 Kilohm) |
| Bandwidth | Incoming: 80 Mb/s Outgoing: 80 Mb/s |
| Recording Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI Output Resolution | 30 Hz: 4096 x 2160, 3840 x 2160 60 Hz: 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| VGA Output Resolution | 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Audio Output | 1-Channel, RCA (Linear, 1 Kilohm) |
| Decoding Formats | H.265+, H.265, H.264+, H.264, MPEG-4 |
| Playback Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 8 Channels |
| Decoding Capability | 1 Channel at 8 MP 4 Channels at 1080p |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| SATA | 1 x SATA Interface |
| HDD Capacity | 6 TB |
| HDD Included | 2 TB |
| Network Interface | 1 x RJ45 1000M Self-Adaptive Ethernet Port |
| USB | 2 x USB 2.0 |
| PoE Interface | 8 x 100M RJ45 Self-Adaptive Ethernet Ports |
| PoE Power | ≤80 W |
| PoE Standard | IEEE 802.3af/at |
| Power Supply | 48 VDC |
| Power | ≤180 W |
| Power Consumption | ≤10 W without HDD & Enabling PoE |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Rack Units | 1 RU |
| Dimensions | 12.4 x 9.4 x 1.9" / 315 x 240 x 48 mm |
| Weight | ≤2.2 lb / ≤1 kg without HDD |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.001 Lux at f/1.0 with AGC 0 Lux with White Light |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| 3-Axis Adjustment | Horizontal: 0 to 360° Vertical: 0 to 75° Rotate: 0 to 360° |
| Lens | 2.8mm |
| Field of View | Horizontal: 96.5° Vertical: 50.8° Diagonal: 113.9° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | f/1.0 |
| Light Supplement | Yes |
| White Light Range | 98' / 30 m |
| Maximum Resolution | 2560 x 1440 |
| Frame Rate | Main Stream: 20 fps at 2560 x 1440, 30 fps at 1920 x 1080, 1280 x 720 Sub-Stream: 30 fps at 1280 x 720, 640 x 480, 640 x 360 |
| Video Compression | Main Stream: H.265, H.264 Sub-Stream: H.265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High Main Stream: H.264+ |
| H.265 Profile | Main Main Stream: H.265+ |
| Video Bit Rate | 32 kb/s to 8 Mb/s |
| Region of Interest | One Fixed Region for Main Stream |
| Audio Compression | G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC |
| Audio Bit Rate | 64 kb/s (G.711ulaw, G.711alaw) 16 kb/s (G.722.1, G.726) 32 to 160 kb/s (MP2L2) 16 to 64 kb/s (AAC) |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 Channels |
| API | ONVIF Profiles G, S & T, ISAPI |
| User/Host Level | Up to 32 Users at 3 Host Levels (Admin, Operator, User) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-In Required Live View: Internet Explorer 10+ Plug-In Free Live View: Chrome 57.0+, Firefox 52.0+ Local Service: Chrome 57.0+, Firefox 52.0+ |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, AGC, White Balance Adjustable by Client Software or Web Browser |
| Day/Night Switching | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, 3D-DNR |
| Ethernet Interface | 1 x RJ45 100M Self-Adaptive Ethernet Port |
| Storage | Supports microSD Cards up to 256 GB |
| Built-In Microphone | Yes |
| Hardware Reset | Yes |
| Basic Event | Motion Detection, Video Tampering Alarm, Exception |
| Linkage Method | Upload to FTP/Memory Card, Notify Surveillance Center, Send Email, Trigger Recording, Trigger Capture |
| Language | English, Ukrainian |
| General Functions | Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Firmware Version | V5.5.122 |
| Power Consumption | 12 VDC, 0.4 A, Maximum 5 W PoE: (802.3af, 36 to 57 V), 0.2 to 0.15 A, Maximum 6.5 W |
| Power Supply | 12 VDC, ±25% PoE: 802.3af, Class 3 |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Storage Humidity | 0 to 95% (Non-Condensing) |
| Approvals | EMC: FCC SDoC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014), RCM (AS/NZS CISPR 32: 2015), KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1), CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014), CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006) |
| IP Rating | IP67 |
| Material of Construction | Metal, Plastic |
| Dimensions (Diameter x Height) | 4.33 x 4.08" / 109.9 x 103.6 mm |
| Weight | 0.84 lb / 380 g |
| Package Weight | 16.185 lb |
| Box Dimensions (LxWxH) | 19.6 x 14.1 x 9.6" |
