1000ft CAT6 Solid U/UTP 550Mhz 23AWG CMR Riser Bulk Cable - BLUE
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!

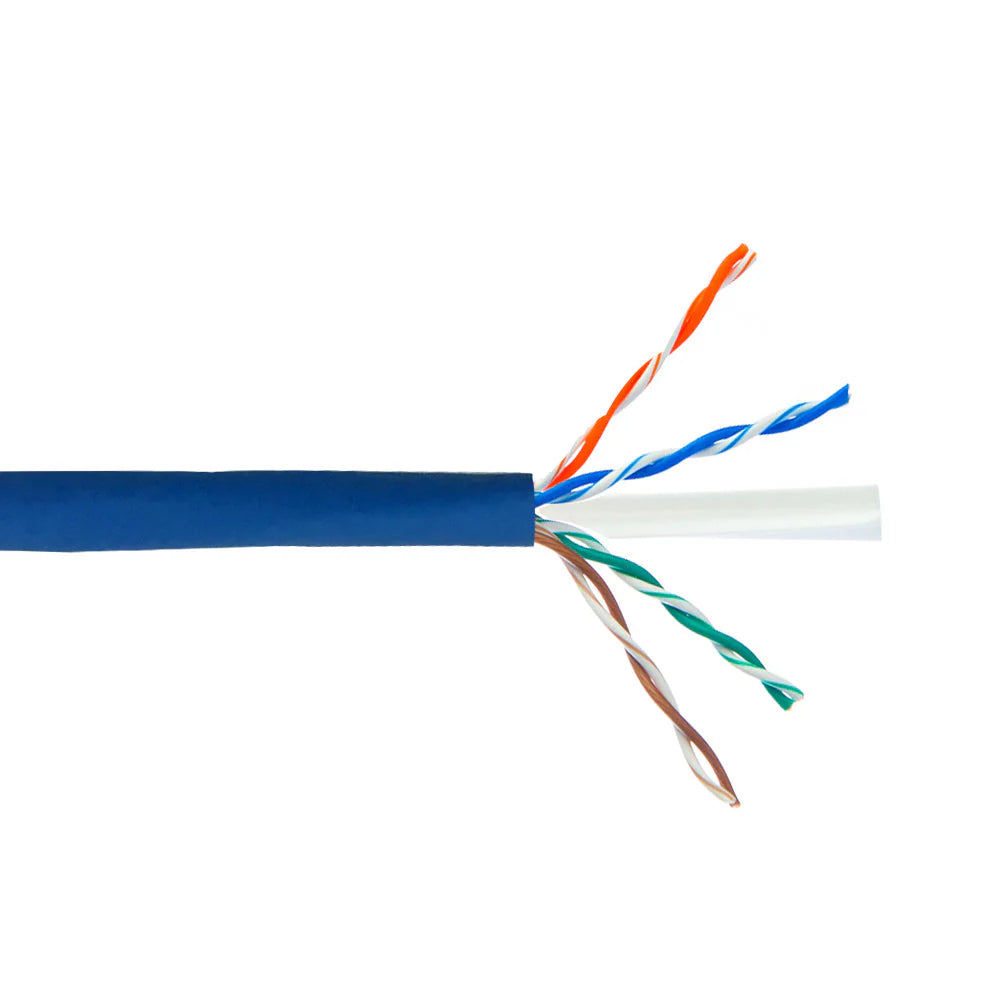

This bulk CAT6 riser rated cable consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is riser (CMR) c(UL)us listed, RoHS Compliant and meets and/or exceeds CAT6 ANSI/TIA-568.C.2 standards. It is typically used in riser environments as premise wiring and terminated from a patch panel to a Cat6 jack.
Ā
Ā
| Physical Characteristics | |
|---|---|
| Color | Blue |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 23AWG Solid |
| Conductor Material | 1 x 0.551Ā±0.005mm 100% Bare Copper |
| Insulation | HDPE, O.D. 0.97Ā±0.03mm |
| Jacket Material | PVC - Polyvinyl Chloride, 0.55mm thickness, O.D. 5.9Ā±0.2mm |
| Jacket Rating | CMR [Riser Rated] |
| Separator | PE |
| Temperature Rating | Installation: 0ā ~ +50ā Storage: -40ā ~ +60ā Operating: -20ā ~ +60ā |
| Pulling Tension |
Max. 100N |
| Bend Radius |
Min. 24mm (4x of cable O.D.) |
| Voltage Rating | 300V |
| Electrical Characteristics | |
| DC resistance |
Max. 7.32Ī©/100m for each conductor(UL444) |
| DC Resistance Unbalance |
Max. 4% within a pair at 20ā |
| DC Resistance Unbalance Pair-Pair | N/A |
| Dielectric Strength |
1kV d.c./0.7kV a.c. for 1min. or 2.5kV d.c./1.7kV a.c. for 2s (IEC61156-5) |
| Insulation Resistance |
5000MĪ©/km (IEC61156-5) |
| Mutual Capacitance |
Max. 5.6nF/100m, 1kHz at 20ā |
| Capacitance Unbalance Pair-ground |
Max. 330pF/100m, 1kHz at 20ā |
| Phase Delay |
Max. 536ns/100m at 250MHzĀ |
| Delay Skew |
Max. 45ns/100m, from 4 to 250MHz at 20ā |
| Nominal Velocity Propagation |
69.5% at 100MHz |
| Characteristic Impedance |
100Ā±5Ī© at 100MHz |
| PoE |
60Vd.c., 4PPoE 100W, IEEE802.3bt type 4 |
| Performance | |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us |
Yes |
| ANSI/TIA-568.2-D | Yes |
| ISO/IEC Compliance | ISO/IEC 11801-1 IEC61156-5 |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals Compliant | Yes |
| Packaging Information | |
| Package Quantity | 1 |
|
Cable Length Product Weight |
1000ft [305m] 33.5 lbs [15.2kg] |
