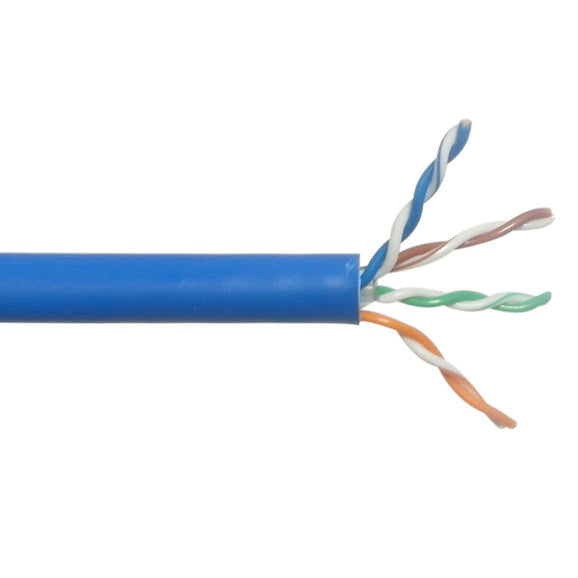

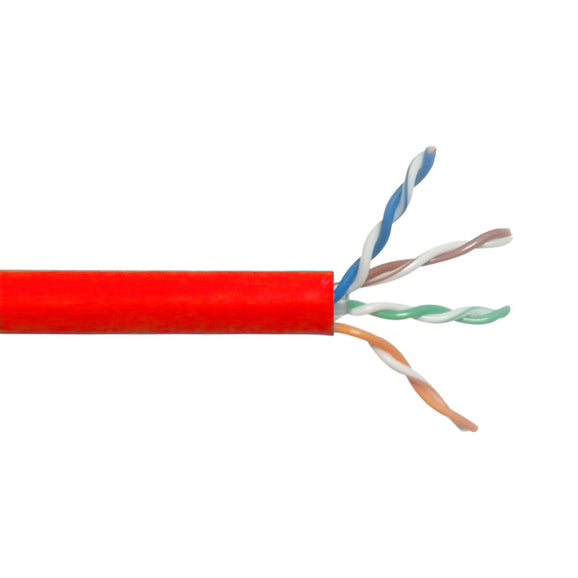

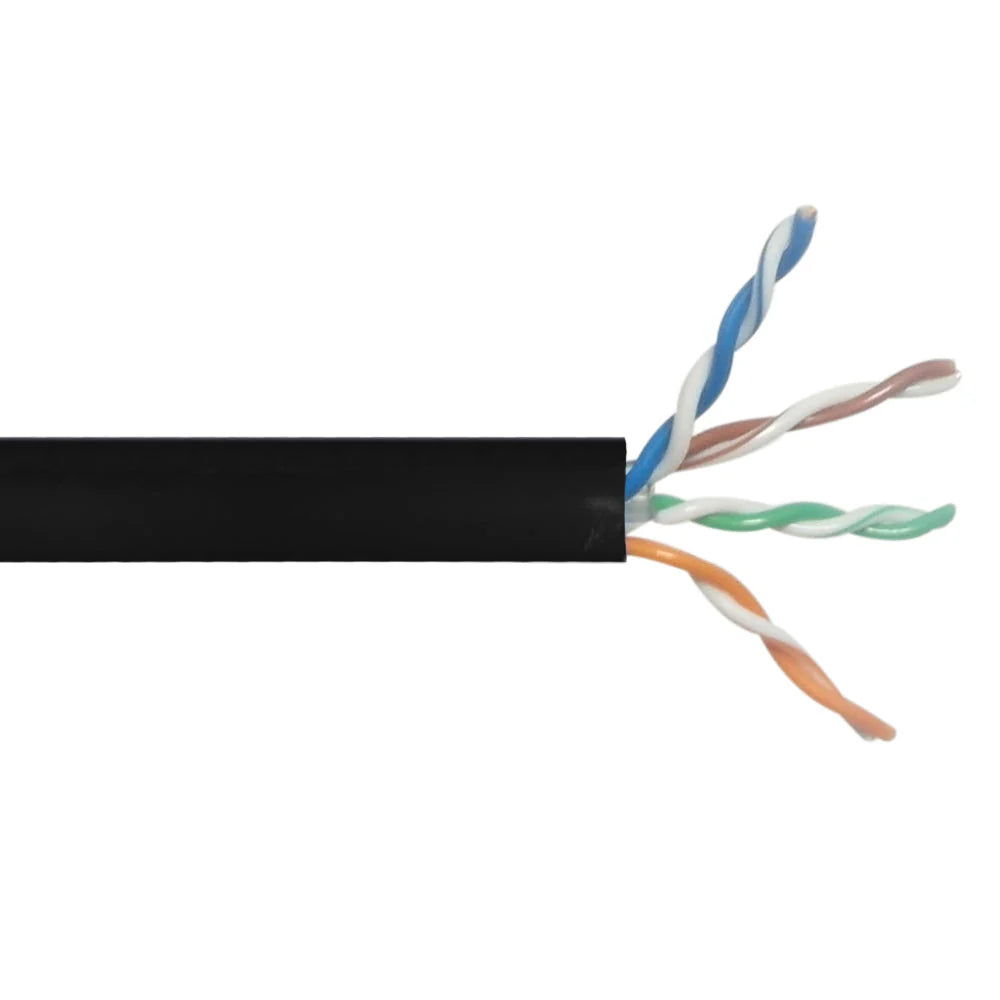

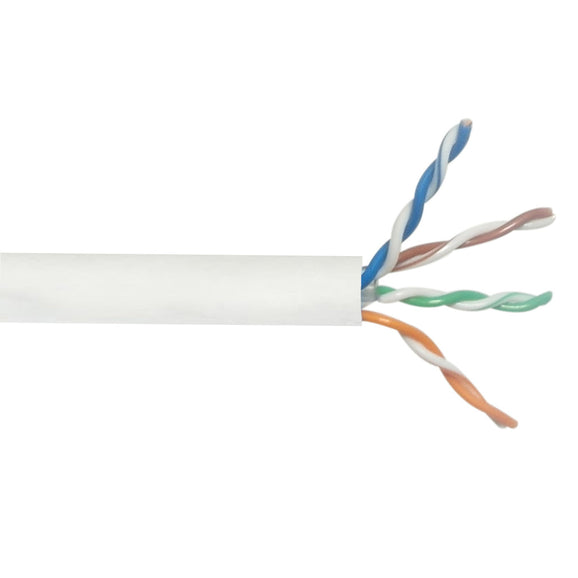

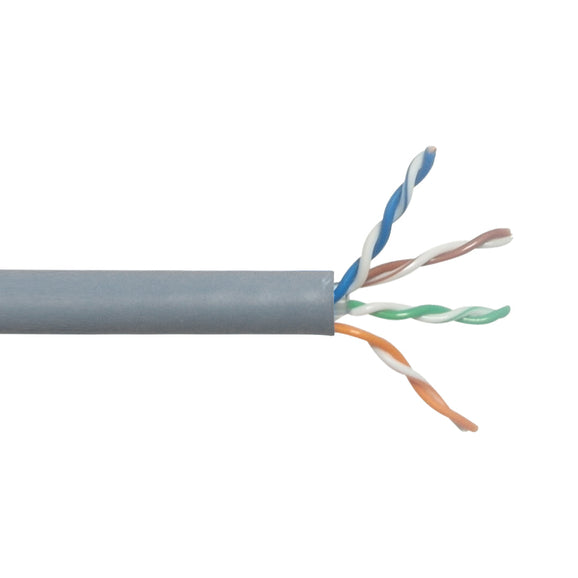

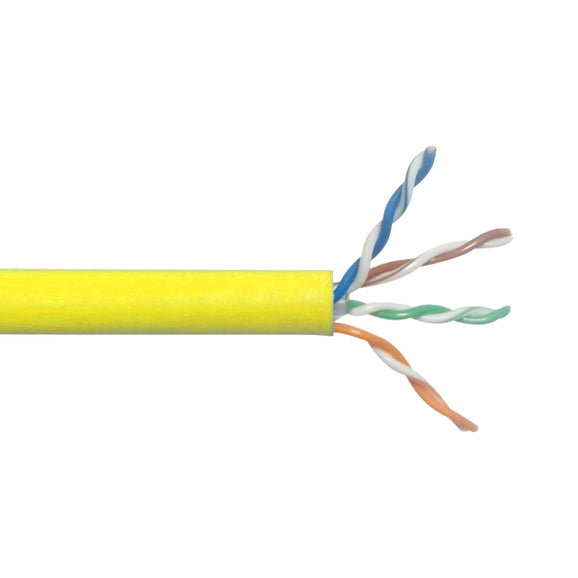

This bulk CAT6A plenum rated cable is 1000 feet in length and consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is plenum (CMP) UL listed, RoHS Compliant and meets and/or exceeds CAT6A TIA/EIA 568 C.2 standards. It is typically used in plenum environments as premise wiring and terminated from a patch panel to a Cat6A jack.Ā
| Physical Characteristics | |
|---|---|
| Color | Blue/Black/Green/Grey/Red/White/Yellow |
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.45 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 23AWG Solid |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP [Plenum Rated] |
| Cable Shielding | None |
| Temperature Rating | -20ā ~ +80ā |
| Performance | |
| FlukeĀ® CAT6A Channel Test | Yes |
| FlukeĀ® CAT6A Permalink Test |
Yes |
| FlukeĀ® CAT6A Patch Cable Test |
Yes |
| Frequency | 650 MHz |
| Approvals | |
| c(UL)us | Yes |
| ISO/IEC 9001 | Yes |
| TIA/EIA 568C.2 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Warranty Information | |
| Warranty | 25 year |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 46.18 lbs [20.9kg] |
