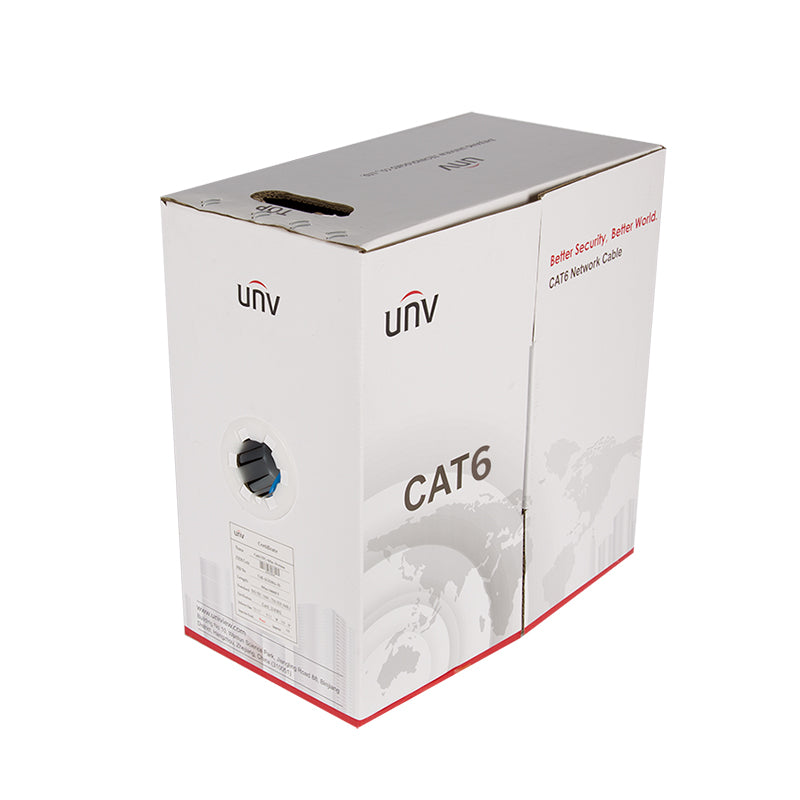

UNV CAT6 UL CMP (550 Mhz) 23AWG Plenum 1000FT Pull Box Network Cable Option for White, Black and Blue
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
|
Product specification |
Cat6 、U/UTP 、4×2×0.57mm CMP(UL) |
||||||
|
Executive Standard |
ISO/IEC11801 ED.2 ANSI/TIA-568-C.2 |
||||||
|
Conductor |
Material |
Solid-Bare Copper |
|||||
|
AWG |
23 |
||||||
|
Nom.O.D.(mm) |
0.57±0.02 mm |
||||||
|
DC resistance |
≤95 Ω/km |
||||||
|
Insulation |
Material |
FEP |
|||||
|
Thickness |
0.2±0.02 mm |
||||||
|
Diameter |
1.0±0.04 mm |
||||||
|
Color |
Blue/White- Blue |
Green/White-Green |
|||||
|
Orange/White-Orange |
Brown/White-Brown |
||||||
|
Pitch |
Offset pitch |
≤20 mm |
|||||
|
Cable pitch |
≤120 mm |
||||||
|
Sheath |
Material |
PVC (UL CMP) |
|||||
|
External O.D. |
6.0±0.02 mm |
||||||
|
Color |
Blue(RAL5015) |
||||||
|
Tensile strength |
>13.5 Mpa |
||||||
|
Thickness |
0.45±0.03 mm |
||||||
|
Surface Printing |
Letter height |
3.0±0.3 mm |
|||||
|
Color |
Black |
||||||
|
Print error & Space |
1±0.005 m |
||||||
|
Case number |
Yes |
||||||
|
Packing |
Packing |
Carton |
|||||
|
Once packing dimension |
420mm*205mm*420mm |
||||||
|
Twice packing dimension |
450mm*440mm*445mm |
||||||
|
Twice packing quantity |
2 cases |
||||||
|
Packing length |
305±1 m |
||||||
|
Rip-cord |
Yes |
Seperator |
LSZH (4.5*0.45mm) |
||||
|
Ambient temperature |
-20℃～60℃ |
||||||
