1000ft 4 Pair CAT5E 350Mhz UTP Solid UV / Direct Burial Gel Filled Bulk Cable - Black
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!

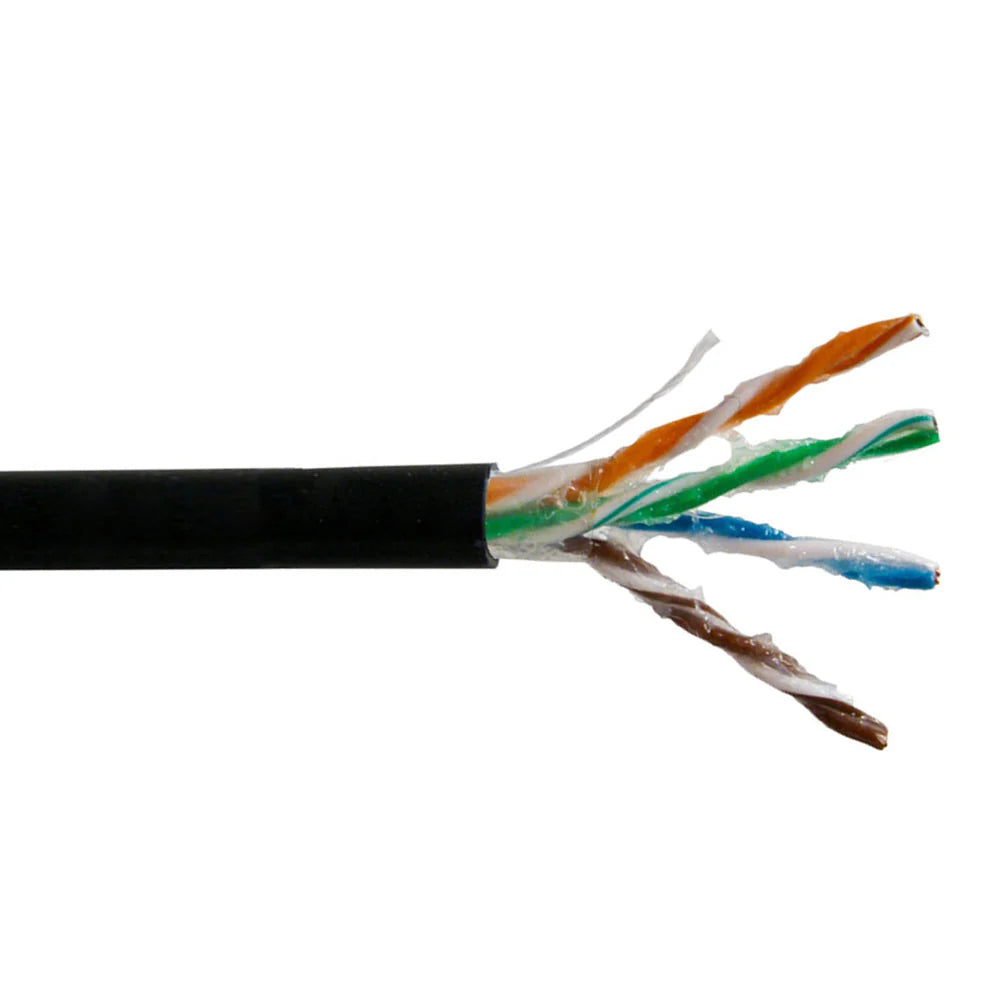

This outdoor rated, gel filled Cat5e bulk cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires. The gel fills the gaps between conductors and outer jacket which prevents damage caused by water. It is typically used outdoors for in ground, direct burial application as premise wiring to connect network devices.
| Physical Characteristics | |||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Black | ||
| Cable Diameter | 5.60±0.10mm | ||
| Number of Pairs | 4 Pairs | ||
| Wire Gauge | 24AWG Solid | ||
| Conductor Material | 100% Bare Copper | ||
| Cable Shielding | None | ||
| Temperature Rating | -40℃ ~ +75℃ | ||
| Jacket Material | LLDPE | ||
| Jacket Rating | Direct Burial / UV | ||
| Jacket Average Thickness | 0.60mm | ||
| Jacket Minimum Thickness | 0.54mm | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.205mm | ||
| Insulation Minimum Thickness | 0.180mm | ||
| Insulation Diameter | 0.91±0.01mm | ||
| Assembly Diameter | 4.20±0.20mm |
||
| Twisted Pair Diameter | 1.82±0.02mm | ||
| Rip Cord | Yes - Nylon | ||
| Electrical Characteristics | |||
| Before Aging | Tensile Strength (Mpa): >=10.6 Elongation (%): >=300 |
||
| Aging Condition (℃ x hrs) | 100x168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
||
| Environmental | |||
| RoHS | Yes | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 28.01 lbs | ||
