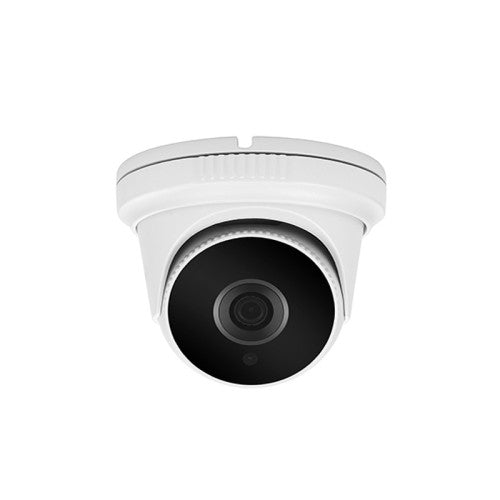

8.0MP 4K 3.6mm IP66 IR LED TVI Turret/Dome Camera
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
8MP 4K 3.6MM Lens, Analog TVI output Dome Camera
WDR IP66 Waterproof, 25M IR distance
Features
|
▶ 8MP HD Analog Out put( AHD/TVI/CVI ) Schools, Airports, Factory, Hotels , Museum, Public Transportation and Other places. |
||
Specification
| Parameter Classification |
Parameter Name | Parameter Value |
| Camera | Image Sensor | 1/1.8” 8MP Progressive Scan COMS |
| Resolution | 3840*2160 | |
| Image System | PAL/NTSC | |
| Minimum Illumination | Color: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR | |
| Electronic shutter | PAL: 1/25 s to 1/10,000 s; NTSC: 1/30 s to 1/50,000 s | |
| Lens | 3.6mm | |
| IR LEDs | 24PCS | |
| SNR | >52dB（AGC off） | |
| IR distance | 25m | |
| Video Frame Rate | 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps | |
| Video Output | 1HD TVI | |
| Menu | D&N | Support ICR EXT/Auto / Color/ BW (Black and White) |
| WDR | WDR | |
| White Balance | ATW / MWB | |
| BLC | Support | |
| Image set | Brightness, sharpness, digital noise reduction,color | |
| Language | English, Chinese | |
| General | Power Supply | 12VDC ± 10 %; |
| Operating Conditions | (-20° C to 60° C), Humidity 90% or less (non-condensing) | |
| Protection level | IP66 | |
| Power Consumption | Max. 6W (Max. 6W with IR cut filter on) |
|
| Dimensions |
Warranty
| Longtech: |
1 Year |
