ASUS Motherboard PRO B550M-C/CSM AMD AM4 DDR4 micro ATX New Retail

$185.59

Hurry up! Sales Ends In

Hurry! Only 3 Left in Stock!

Real time 24 visitor right now
DELIVERY & RETURN
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

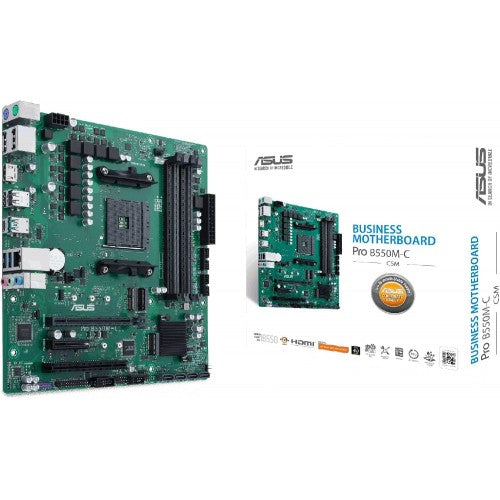

ASUS Motherboard PRO B550M-C/CSM AMD AM4 4*DDR4 M-ATX New Retail

Model
Brand ASUS
Model PRO B550M-C/CSM
Supported CPU
CPU Socket Type  AM4
CPU Type AMD AM4 Socket for AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Desktop Processors *
* Refer to www.asus.com for CPU support list
Chipsets
Chipset  AMD B550
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard AMD Ryzen 5000 Series/3000 Series Desktop Processors
DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory *
AMD Ryzen 4000 G-Series Desktop Processors
DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 AMD Ryzen 5000 Series/3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode) *
AMD Ryzen 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
* Support PCIe bifurcation for RAID on CPU function.
PCI Express 3.0 x16  1 x PCI Express 3.0 x16
PCI Express x16 None
PCI Express x4 AMD B550 Chipset
1 x PCIe 3.0 x4 *
* The PCIe x4 slot runs x2 mode when the PCI slot is occupied.
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 AMD Ryzen 5000 Series/3000 Series Desktop Processors:
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD Ryzen 4000 G-Series Processors:
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset:
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic:
2 x DisplayPort
1 x HDMI 2.1 (4K@60HZ)
* Graphics specifications may vary between CPU types.
Onboard Audio
Audio Chipset  Realtek ALC887/897
Audio Channels  7.1 Channels
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Realtek RTL8111H
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
2 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
HDMI  1 x HDMI
USB 3.0  2 x USB 3.0
Internal I/O Connectors
Onboard USB 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
Other Connectors 1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x LPT header
1 x Thunderbolt header(s)
1 x Front panel audio connector(s) (AAFP)
1 x SMBus header(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Chassis intrusion header
1 x LPC Debug header
1 x Speaker connector
Physical Spec
Form Factor Micro ATX
LED Lighting None RGB
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
Software Feature
Windows 11
