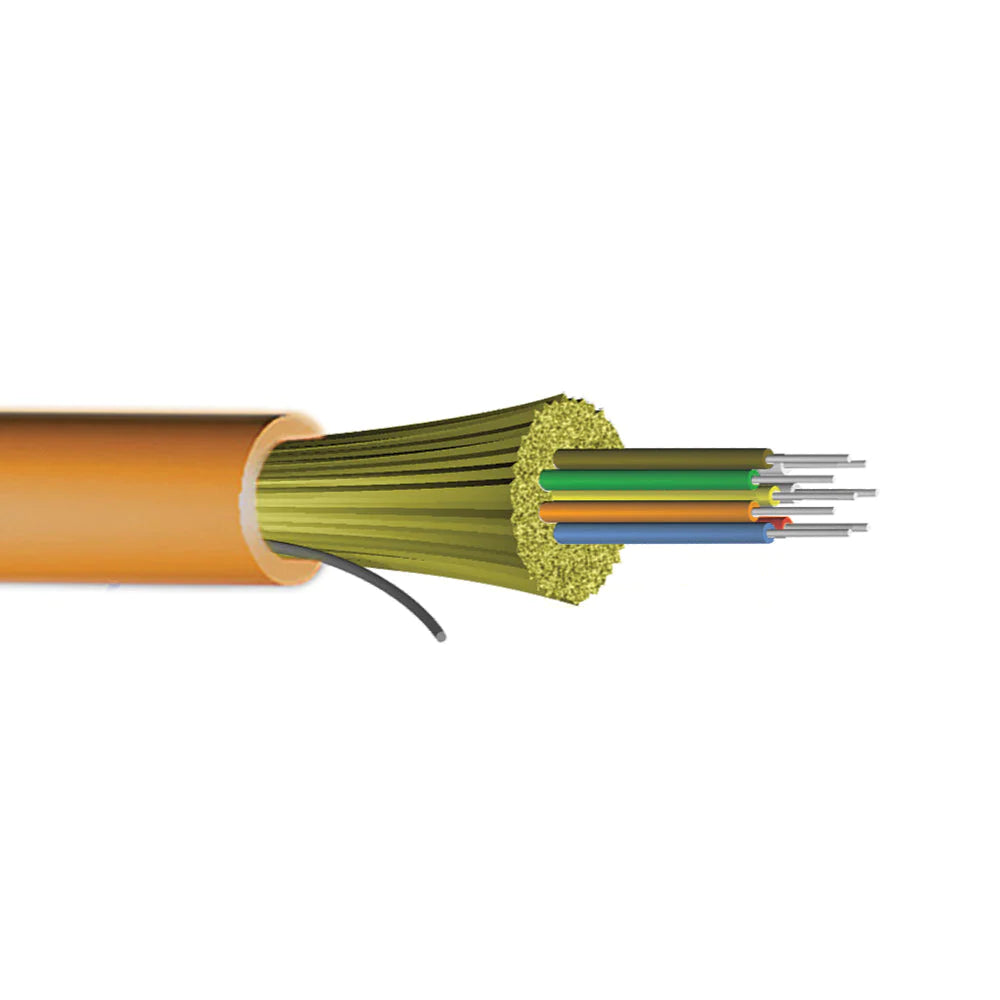

This bulk OM1 fiber cable is indoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It is ideal for routing between communications closets and equipment rooms.
Features
- Applications include: plenum, general inside plant, routing between communications closets and equipment rooms, intra-building backbones.
- Compliant to Directive 2002/95/EC (RoHS) as well as REACH.
- Durable jacket offers added protection during installation and in rugged use applications
| Physical Characteristics | |
|---|---|
| Color | Orange |
| Fiber Optic Type | OM1 62.5 micron Multimode Riser Indoor Tight Buffered Cable |
| Fiber Count | 6-Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 4.8mm |
| Weight | 57 lbs/km |
| Bending Radius(Installation) | 7.2mm |
| Bending Radius(Long Term) | 4.8cm |
| Operating Temperature | -0ā ~ +70ā |
| Storage Temperature | -40ā ~ +70ā |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.0dB/km |
| Bandwidth Range | @850nm > 220 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| 1 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| Fire Rating | OFNP |
| Certification(s) | |
| UL |
Yes |
| Environmental | |
| RoHS, REACH | Yes |
Cable Weights
| 6-strand |
|---|
| 0.07 lbs |
