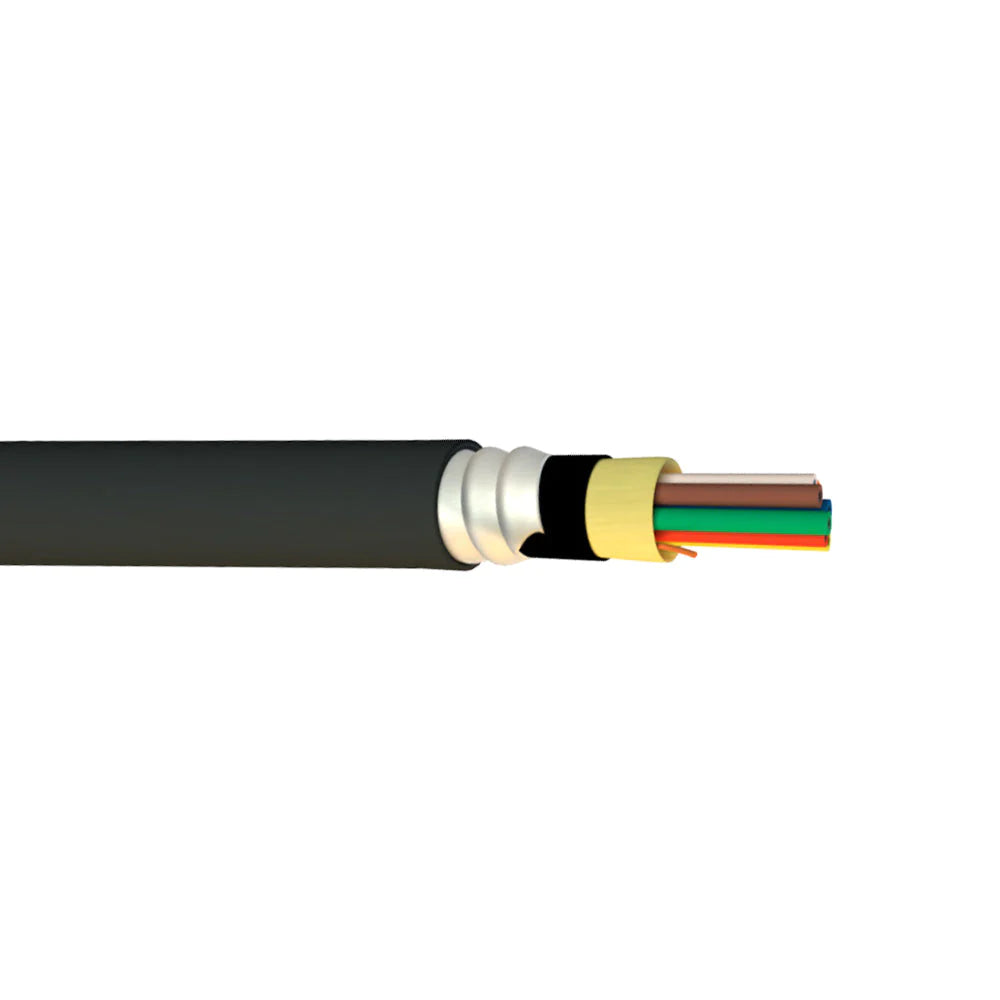

OM3 Multimode 50 Micron Indoor/Outdoor Armored AFL (Corning ClearCurve) - OFCP Plenum Fiber Bulk Cable (per meter)
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This bulk 12-strand OM3 armored fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFCP rated for plenum and general inside plant environments. It's aluminum interlocking armor provides the best balance of ruggedness, flexibility, and low weight. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection and water-blocking elements for outdoor applications.
Features
- Cables are water blocked and meet water penetration requirements of GR-20-CORE
- Outer jacket is moisture-resistant, fungus-resistant and UV resistant for outdoor use
- Tested to meet or exceed EIA/TIA 568-A/GR-409-CORE and ICEA-S-104-696
- Approved for use in mining applications
- RoHS/REACH Compliant
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM3 50 micron Multimode Plenum Indoor/Outdoor Armored Tight Buffered Cable |
| Fiber Count | 12-Strand |
| Glass Fiber | Corning ClearCurve |
| Armorer |
Aluminum Interlocking Armor |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 0.63 inch (15.9mm) |
| Tension (Installation) | 300 lbs (1335 N) |
| Tension (Long Term) | 90 lbs (396 N) |
| Bending Radius (Installation) | 8.4 inch (214.5mm) |
| Bending Radius (Long Term) | 9.5 inch (238.5mm) |
| Installation Temperature | -10ĀŗC to +70ĀŗC |
| Operating Temperature | -40ĀŗC to +70ĀŗC |
| Storage Temperature | -40ĀŗC to +70ĀŗC |
| Attenuation Range |
@850nm 3.0dB/km |
| Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
| Gigabit Ethernet Min. Link Distance | @850nm = 1000 meters @1300nm = 550 meters |
| 10 Gigabit Ethernet Min. Link Distance | @850nm = 300 |
| Fire Rating | OFCP |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
| Water-Blocking | Yes |
| Certification(s) | |
| ETL | Yes |
| c(ETL) | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.6Ā lbs/m |
