OS2 Singlemode 9 Micron Indoor (Corning SMF-28 Ultra) - OFNR Riser Fiber Bulk Cable (per meter) - 12-Strand
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!

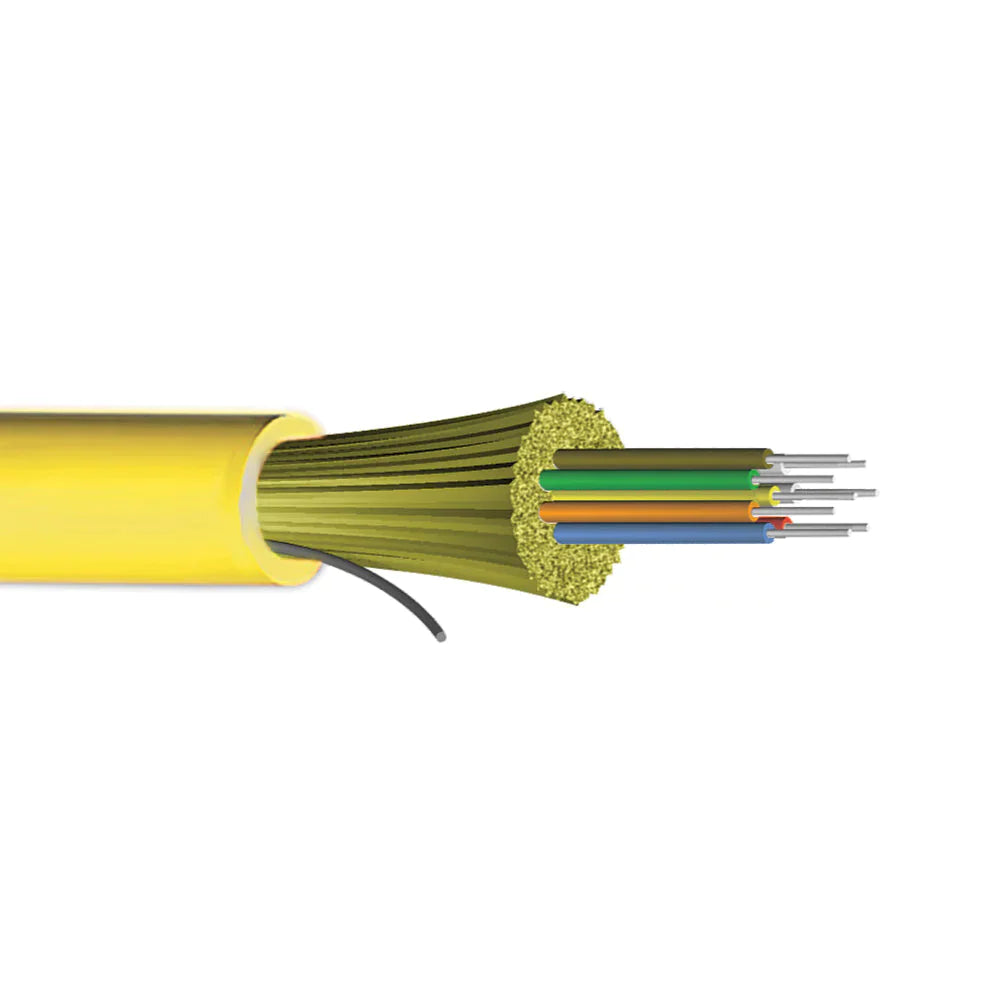

This bulk OS2 fiber cable is indoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments.
Features
- Tested to meet or exceed ICEA-S-83-596, GR-409-I2, CSA 22.2#232, UL 1666.
- ITU-T G.652.D compliant and fully backwards compatible.
- Exceeds the ITU-T Recommendation G.657.A1 standard.
- Applications include: riser, general inside plant, routing between communications closets and equipment rooms, intra-building backbones.
- Compliant to Directive 2002/95/EC (RoHS)
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | OS2 9 micron Singlemode Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 12-Strand/ 24-Strand |
| Glass Fiber | Corning SMF-28 Ultra |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter |
5.8mm (12-Strand) 7.8mm (24-Strand) |
| Bending Radius(Installation) |
8.7cm (12-Strand) 11.8mm (24-Strand) |
| Bending Radius(Long Term) |
5.8cm (12-Strand) 7.8mm (24-Strand) |
| Operating Temperature | -20 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Attenuation Range | @1310nm 0.5dB/km @1550nm 0.4dB/km |
| Gigabit Ethernet Min. Link Distance | 1300nm = 5000 |
| 10 Gigabit Ethernet Min. Link Distance | 1310nm = 10000 1550nm = 5000 |
| Fire Rating | OFNR, FT4 |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
| Certification(s) | |
| UL | Yes |
| REACH | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USAĀ |
| Packaging Information | |
| Package Quantity | 1 |
| 12-strand | 24-strand |
|---|---|
| 0.07 lbs/m | 0.11 lbs/m |
