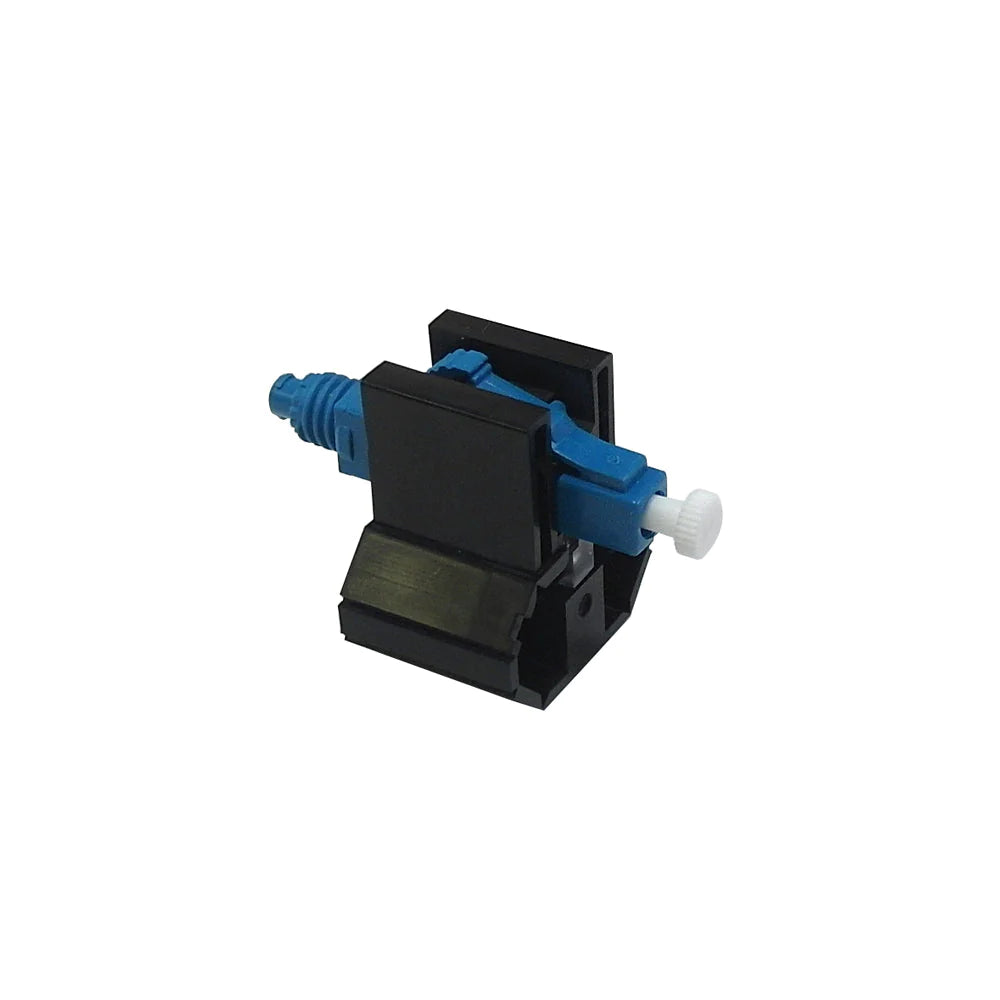

FASTCONNECT LC SM UPC Blue Connector
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
These fiber optic FASTConnect field-termination LC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination on singlemode optical fibers. FAST Connectors are compatible with 900 Āµm optical fibers, as well as 2 mm and 3 mm cordage (2mm and 3mm boots sold separately). The connectors are color coded per industry standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
Features
- No Epoxy, No Polish
- Low Insertion Loss
- Fiber Can Be Reinserted up to Three Times
- 3.0 mm, 2.0 mm and 900 Ā¼m Cordage Compatibility
- VFI Accessory to Confirm Proper Installation
Applications
- Premise/Enterprise Networks
- LAN/WAN Connections
- Patch Panels
- Equipment Termination
- FTTx Applications
- Field Repair/Replacement
- Equipment Test Leads
| Physical Characteristics | ||
|---|---|---|
| Color | Blue | |
| Cable Diameter | 900Ā¼m | |
| Fiber Size | 9/125 micron | |
| Fiber Type | Singlemode | |
| Operating Temperature | -40Ā°C to +75Ā°C | |
| Fiber Classification | UPC | |
| Connector | ||
| Connector | LC Simplex Male | |
| Performance | ||
| Insertion Loss | Average: 0.2 dB, Maximum: 0.5 dB | |
| Return Loss | Average: -55 dB, Maximum: -45 dB | |
| Package Information | ||
| Package Quantity | 6 | |
| Product Weight | 0.18 lbs | |
