Fiber Optic Red Light Pen Tester VFL (Visual Fault Locator) - 1mW - 2.5mm Ferrule for SC & ST
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
OVERVIEW

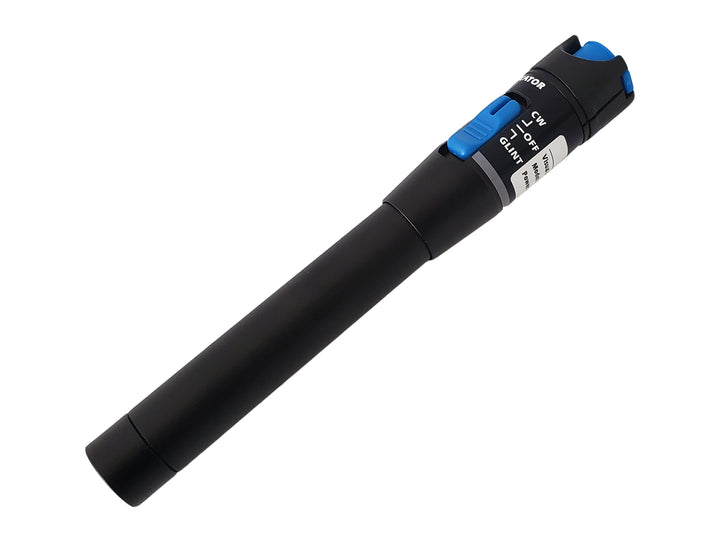

This pen shaped visual fault locator is a tool used on terminated fiber optic cables to locate sharp bends or breaks in jacketed or bare fiber.
Note: Meant for use with polished, terminated fiber cables. Always insert and remove the fiber connector without bending the connector to avoid breaking the ceramic tube.
 |
PROTECTIVE COVERThe protective dust cap keeps the fiber connection port clear from dust and debris when not in use. DURABLE METAL HOUSINGThe VFL is constructed with a metal housing for long lasting durability. IDENTIFY FIBER BREAKS EASILYThe pen has a bright red laser at 650nm and can quickly illuminate fiber optic cable breaks. It also has continuous (CW) and flashing (Glint) modes. |
SPECIFICATIONS
| Physical Characteristics | |
|---|---|
| Material | Metal Housing |
| Wave Output | 650nm Ā± 20nm |
| Fiber Connector | 2.5mm Universal Connector |
| Output Power | 1mW |
| Dynamic Distance | 3~5km |
| Operation Mode | Pulsed (2Hz) and CW |
| Operating Temperature | 0 ~ +60 deg C |
| Storage Temperature | -20 ~ +70 deg C |
| Battery Style | LR6 (AA) 1.5V x 2 (Batteries not Included) |
| Battery Life | >40H (1mW) |
| Size | 175 x 26 x 26mm |
| Adapter Specifications (sold separately) | |
|
TLH-2000-AĀ (LC) |
Max Insertion Loss - 0.5dB |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.37 lbs [0.17 kg] |
| Items Included | 1 x VFL Pen 1 x Carrying Case 1 x Carrying Strap (Batteries not Included) |
