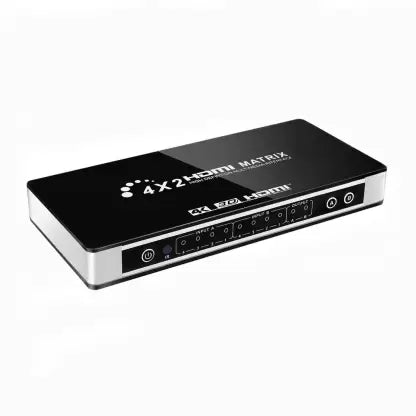

– Four HDMI input signals switch or split to two HDMI sink devices.
– Output HDMI A is with audio output through Toslink and R/L Stereo.
– Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable.
– Supports 3D
– Supports 4K x 2K x 30Hz.
– with HDMI-CEC function.
– Supports deep color 30bit, 36bit.
– Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
– Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD.
– Supports signal retiming.
– Supports input up to 15 metres (AWG24 HDMI standard cable length) output up to 20 metres AWG24 cable length.
– Inputs can be switched with the IR remote control, and also can be controlled by two buttons.
– It can come back to the return to default input 1 when restart or reset.
– LED indicator: when any one of the inputs of sources is selected, the relative input LED indicator will be on.
– No loss of quality.
– Install in minutes.
Specifications
HDMI version ………………………………………………………………………… HDMI 1.4, HDCP 1.4
HDMI resolution …………… 24/50/60fps/480i/480p/576i/576p/720/1080i/1080p
/4K x 2K@24/25/30fps@30Hz.
Support video color format ………………………. 24 bit/deep color 30bit, 36vit, 48bit
Support audio format .. DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output ……………………………………………………………………… SPDIF and audio stereo
Max transmission bandwidth ……………………………………………………………………… 340MHz
Max baud rate ……………………………………………………………………………………………… 10.2Gbps
Input/Output TMDS signal …………………………………………………………….. 0.5-1.5Volts p-p
Input/Output DDC signal …………………………………………………………………. 5Volts p-p(TTL)
Input cable distance ………………………………….. ≤15m AWG24 HDMI standard cable
Output cable distance………………………………… ≤24m AWG24 HDMI standard cable
Working current …………………………………………………………………………………………….. 1.3A max
Power adapter format ………….…… Input:AC100V-240V(50/60Hz):Output:DC5V/2A
Operating Temperature range …………………………………………………………….. (-15 to +45°C)
Operating Humidity range ………………………………………. 5 to 90%RH(No Condensation)
Dimension (LxWxH) ……………………………………………………………………………… 218x106x28mm
Weight ……………………………………………………………………………………………………………………….. 305g
