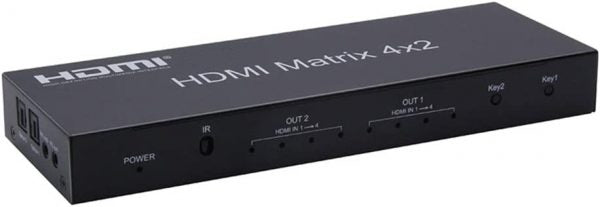

- This 4K 60Hz 4X2 HDMI matrix can switch between 4 input source devices and distribute the signal to 2 monitors (2 monitors can display the same image or different images), and any output port can pass optical SPDIF or 3.5 Independent output audio millimeter audio jack.
- Support HDMI 2.0 and HDCP 2.2. With a resolution of up to 4K@60Hz (RGB / YUV 4:4:4) Support video format:8/10/12 bit deep color Support audio format: LPCM/DTS/Dolby-AC3 , you can enjoy an excellent visual feast.
- The product can amplify the HDMI signal at the HDMI output terminal to increase the transmission distance of the output signal, choose different resolutions, the transmission distance is longer, 1080P can reach a transmission distance of 15 meters, 4K @ 30HZ transmission 10 meters, 4K @ 60HZ transmission is 5 meters.
- This product has a very powerful EDID copy function, which makes it be able to identify the display device parameters and match it, enhance compatibility with the device, and adapt to various complex application environments. Support 4K (input) to 2K (output) (down scaler).
- Double choice: remote control switch or manual button switch, built-in IR sensor, comes with a handy, intuitive remote that makes switching inputs, outputs, and audio channels easy.
- Support set-top boxes, desktops, notebooks, PS4 game consoles and other devices with HDMI interface, connect projectors, monitors, etc., plug and play. Compatible with multiple systems: compatible with Windows series, Mac OS, Linux and other systems, no need to install drivers, plug and play.
- This 4X2 HDMI matrix is suitable for entertainment centers, retail and websites, HD TV set-top boxes, DVDs, projector factories, data center control, information distribution, meeting rooms, schools and corporate training.
Product parameters:
-HDMI version: HDMI 2.0 (backward compatible)
-HDCP version: HDCP 2.2 (downward compatible)
-Resolution: Up to 3840×2160 / 60Hz (RGB / YUV 4:4:4) (backward compatible)
-Support audio format: LPCM / DTS / Dolby-AC3
-Support video format: 8/10/12 color depth
-Maximum bandwidth transmission: 600MHz
-Maximum transmission rate: 3x6Gbps
-HDMI input port: 4
-HDMI output port: 2
-Optical SPDIF: 2
-3.5mm jack: 2
-Input cable length: 1080P≤15M; 4k @ 30Hz≤10M HDMI standard cable, 4k @ 60Hz≤5M HDMI AWG26 HDMI standard 2.0 cable
-Output cable length: 1080P≤15M; 4k @ 30Hz≤10M HDMI standard cable, 4k @ 60Hz≤5M HDMI AWG26 HDMI standard 2.0 cable
