1000 ft. Solid Shielded F/UTP CAT6a (650MHz) Network Cable - FT6/CMP - Black Box

Product Description

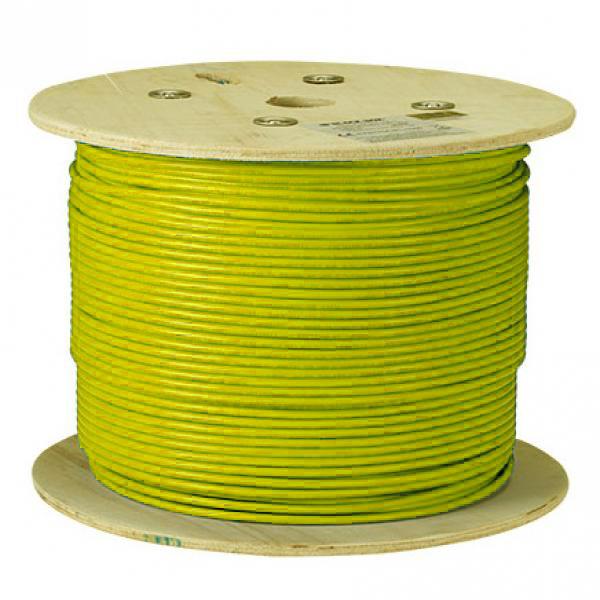

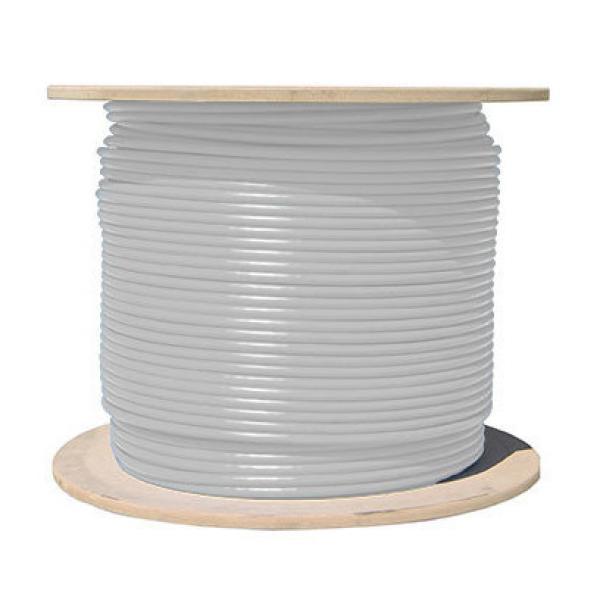

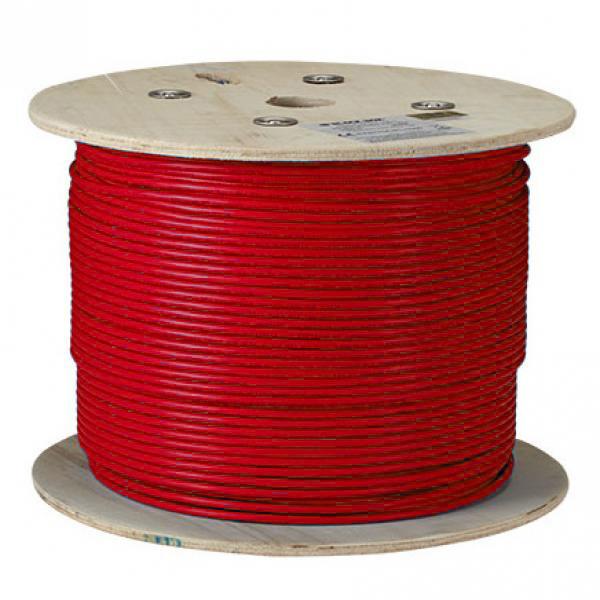

GigaTrue CAT6A 650-MHz Solid Ethernet Bulk Cable

Black Box CAT6A 650-MHz Solid Ethernet Bulk Shielded Cable provides transmission performance beyond 650MHz exceeding the industry standards and ETL Verified for supporting the operation of 10Gig Ethernet applications (10GBASE-T). This cabling provides support for high bandwidth applications such as data centers and other data-intensive or backbone requirements.

Shielded (F/UTP)

CMP Plenum

Features:
- Constructed from Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape
- A center isolation member maintains pair separation for optimal NEXT performance
- CAT6A UTP comes with 0.271" outside diameter
- Tested up to 650 MHz
- Foil shield construction virtually eliminates alien crosstalk
- Supports IEEE 802.3 and 10GBASE-T, and TIA 568-C.2. ETL tested

Tech Specs:
ACRF: 28 dB at 100 MHz; 20 dB at 250 MHz; and 14 dB at 500 MHz
Bend Radius: 2.17” (55 mm)
Conductors: 4-pair, 23 AWG, Solid Copper
Construction: Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar® tape
Insertion Loss (Maximum): 19.1 at 100 MHz; 45.3 at 500 MHz
Insulation: Fluoropolymer (FEP)
Jacket: FR PVC (Low Smoke)
NEXT: 45.3 dB at 100 MHz; 39.3 dB at 250 MHz; 37.1 dB at 350 MHz; 34.8 dB at 500 MHz; 33.1 dB at 650 MHz
Frequency: 650-MHz
Safety Testing: NFPA-262 CMP
Shielding: Aluminum Foil/Mylar Tape with Tinned Drain Wire (F/UTP)
Outside Diameter: 0.271” (6.9 mm ± 0.2 mm)
PS-NEXT: 43.3 dB at 100 MHz; 37.3 dB at 250 MHz; 35.1 dB at 350 MHz; 32.8 dB at 500 MHz
Return Loss: 20.1 at 100 MHz; 15.5 at 500 MHz
Standards: IEEE 802.an; TIA 568-C.2; UL, ETL Tested
