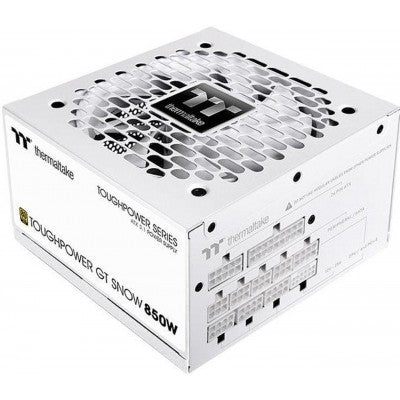

Thermaltake Toughpower (SNOW) GT850W ATX3.1 80+Gold Full-Modular ATX Power Supply
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Thermaltake Toughpower(SNOW)GT850W ATX3.1 80+Gold Full-Modular ATX Power Supply
| Brand | Thermaltake |
|---|---|
| Model | PS-TPT-0850FNFAGU-W |
| Color | Snow |
|---|---|
| Type | ATX (ATX 3.1 Compatible) |
| Maximum Power | 850 W |
| Fans | 12cm Hydraulic bearing fan |
| PFC | Active |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Power Good Signal | 100-250 msec |
| Hold-up Time | > 17msec at 80% load |
| Energy-Efficient | Meet 80 PLUS Gold at 115Vac input. |
| Protection | OVP/UVP/OCP/OPP/OTP/SCP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A Max. |
| Output | +3.3V@20A, +5V@20A, +12V@70.8A, -12V@0.3A, +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
| Connectors | 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe |
| Cable Spec | 1 x Main Power (24Pin) x1 550mm 2 x ATX 12V(4+4Pin) x1 700mm 2 x PCIe(6+2Pin) x2 600mm+150mm 1 x PCIe(12+4Pin) 600W x1 600mm 2 x SATA (5Pin) x3 450mm+150mm+150mm 1 x Peripheral (4Pin) x4 400mm+150mm+150mm+150mm |
| Dimensions | 150 x 86 x140mm |
|---|
