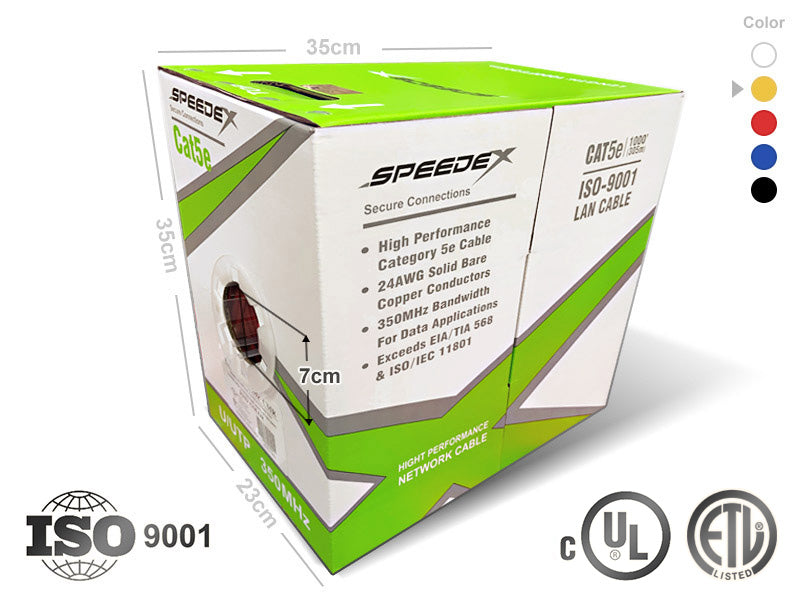

1000ft Roll, 4Pair,350MHZ, UTP, CMR/FT4, Solid Bulk Cat5e Ethernet Network Cable
Features

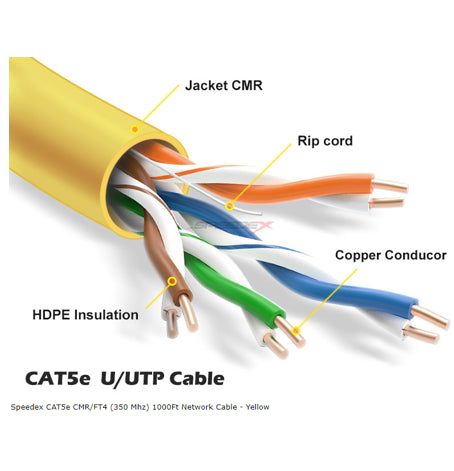

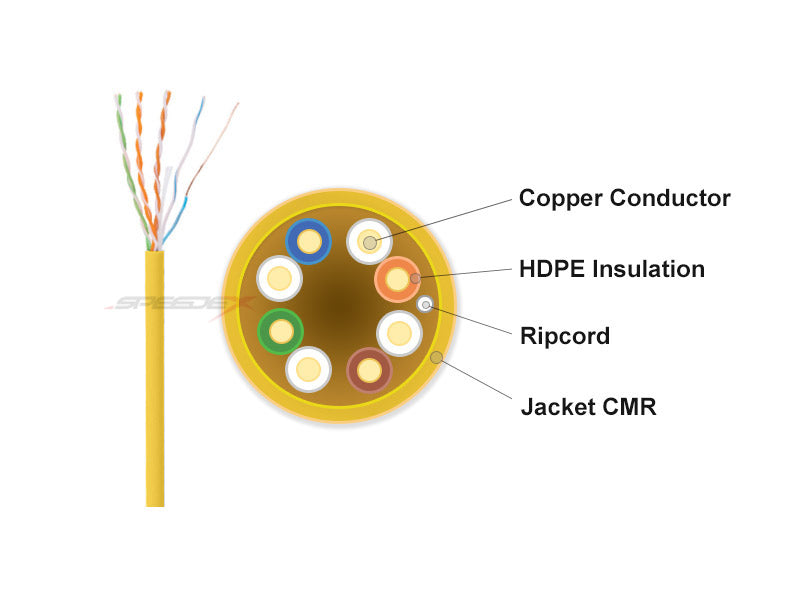

This bulk Cat5e cable is 1000 feet in length; UTP PVC Sheath; It consists of 4 pairs of 24AWG stranded wires; It uses high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime; It provides 350 MHz of bandwidth, and offers high speed, uninterruptedĀ connection; CMR CUL listed.
Ā
Specification
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 5.10 mm(Ā±0.30mm) |
| Number of Pairs | 4 Pairs |
| Each Cord Copper Diameter | 0.49 mm (Ā±0.005 mm) |
| Wire Gauge | 24AWG |
| Color of Pairs | 1 White- Blue /Blue |
| 2 White-Orange /Orange | |
| 3 White- Green /Green | |
| 4 White- Brown /Brown | |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4Ā |
| Jacket Color | Yellow |
| Cable Shielding | None |
| Rip Cord | Yes - Nylon |
| Temperature Rating | -30ĀŗC to 75ĀŗC |
|
Approvals
|
|

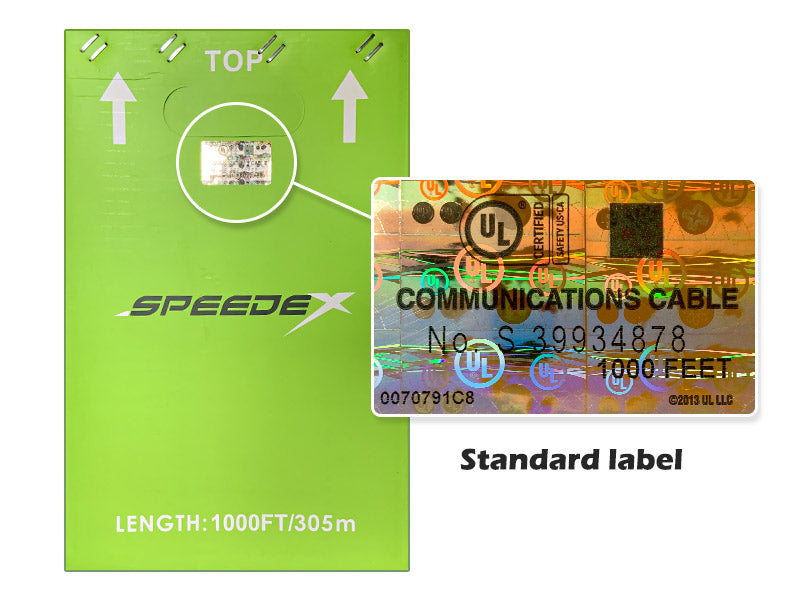

| c(UL) | Yes |
|
Packaging Information
|
|
| Package Quantity | 1PCĀ |
| Product Weight | 22.16 lbs [10.05 kg] |
