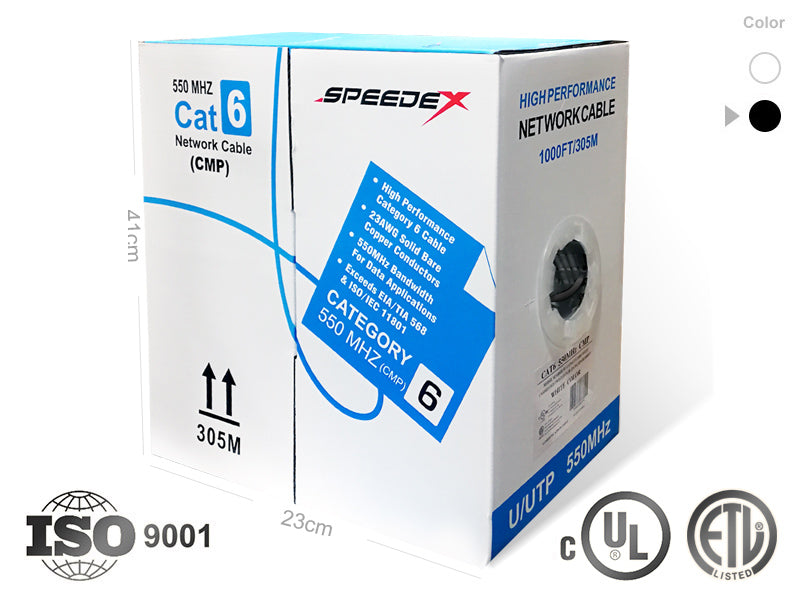

Features

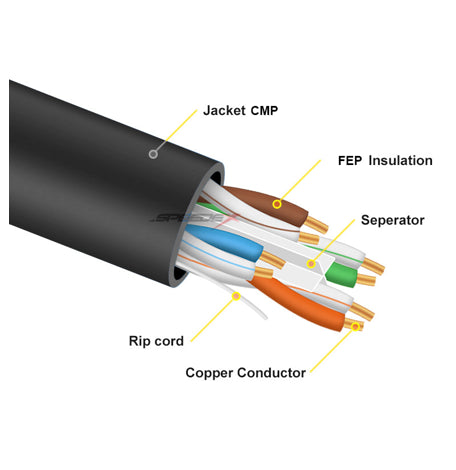

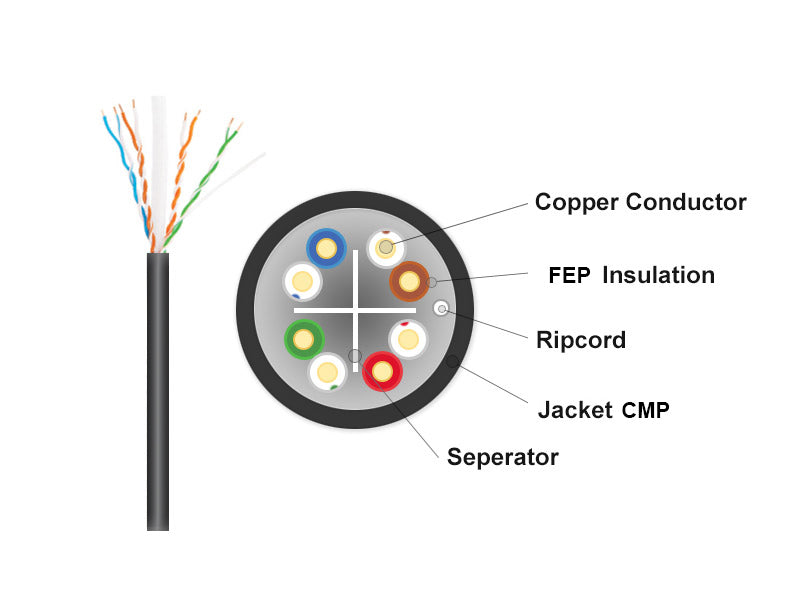

This bulk Cat6 FT6 cable is 1000 feet in length; UTP PVC Sheath; It consists of 4 pairs of 23AWG stranded wires; It uses high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime; It provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection; CMP/FT6 CUL listed.
Ā
Specification
|
Cable Length |
1000 foot [305m] |
|
Cable Diameter |
5.5 mm(Ā±0.20mm) |
|
Insulation |
FEP |
|
Number of Pairs |
4 Pairs |
|
Each Cord Copper Diameter |
0.55 mm (Ā±0.005 mm) |
|
Wire Gauge |
23AWGĀ |
|
Color of Pairs |
1 White- Blue /Blue |
|
2 White-Orange /Orange |
|
|
3 White- Green /Green |
|
|
4 White- Brown /Brown |
|
|
Conductor Material |
100% Bare Copper |
|
Jacket |
CMP PVC - Polyvinyl Chloride |
|
Flammability Test |
CMP/FT6Ā |
|
Filler |
LSZH |
|
Jacket Color |
Black |
|
Cable Shielding |
None |
|
Rip Cord |
Yes - Nylon |
|
Temperature Rating |
-30ĀŗCĀ to 75ĀŗC |
|
Approvals |
|
|
c(UL) |
Yes |
|
Packaging Information |
|
|
Package Quantity |
1PC |
|
Product Weight |
29.55lbs [13.40 kg] |
|
Performance |
|
|
Electrical Charateristics |
Ā |
|
1.0-500MHz Impedance(ohms) |
100Ā±15 |
|
1.0-500MHZ |
|
|
1.0-500MHz Delay Skew(ns/100m) |
ā¤45 |
|
Pair-to-Ground Capacitance Unbalance (pF/100m) |
ā¤30 |
|
Max. Conductor DC Resistance 20 oC (ohms/km) |
ā¤95 |
|
Resistance Unbalance (%) |
ā¤5 |
|
Mechanical Characteristics |
Ā |
|
Test Object |
Jacket |
|
Test Material |
CMP PVC |
|
BeforeĀ Tensile Strength |
ā„17.2 |
|
AgingĀ Tensile Strength |
ā„14.62 |
|
Aging Condition ( oCxhrs) |
232x24Ć7 |
|
AfterĀ Elongation (%) |
ā„100 |
|
AgingĀ Elongation (%) |
ā„50 |
|
Cold Bend(- 20Ā±2oCx4hrs) |
No crack Ā |
