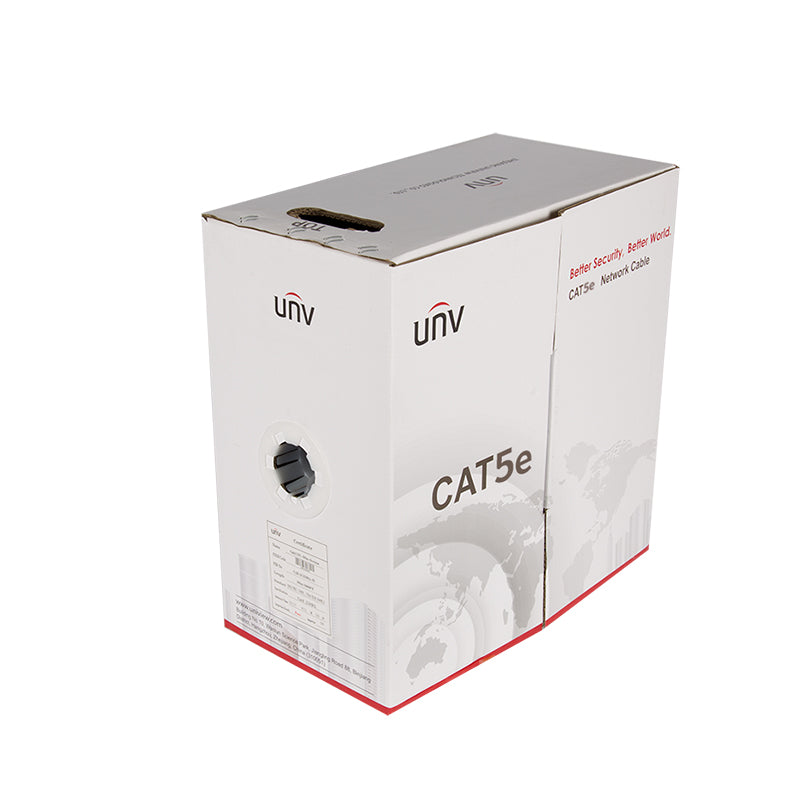

UNV CAT5e UL CMR (350 Mhz) 24AWG Riser 1000FT Pull Box Network Cable Option for White, Black and Grey
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
|
Product specification |
Cat5e. U/UTP. 4×2×0.50mm CMR(UL) |
||||
|
Executive Standard |
ISO/IEC11801 ED.2 ANSI/TIA-568-C.2 |
||||
|
Conductor |
Material |
Solid-Bare Copper |
|||
|
AWG |
24 |
||||
|
Nom.O.D.(mm) |
0.5±0.005 mm |
||||
|
DC resistance |
≤95 Ω/km |
||||
|
Insulation |
Material |
HDPE |
|||
|
Thickness |
0.2±0.02 mm |
||||
|
Diameter |
0.9±0.05 mm |
||||
|
Color |
Blue/White- Blue |
Green/White-Green |
|||
|
Orange /White-Orange |
Brown/White-Brown |
||||
|
Pitch |
Offset pitch |
≤25 mm |
|||
|
Cable pitch |
≤140 mm |
||||
|
Sheath |
Material |
PVC(complies RoHS/REACH) |
|||
|
External O.D. |
5.1±0.3 mm |
||||
|
Color |
Gray(RAL7046) |
||||
|
Tensile strength |
>13.5 Mpa |
||||
|
Thickness |
0.55±0.05 mm |
||||
|
Surface Printing |
Letter height |
3.0±0.3 mm |
|||
|
Color |
Black |
||||
|
Print error & Space |
1±0.005 m |
||||
|
Case number |
Yes |
||||
|
Packing |
Packing |
Carton |
|||
|
Once packing dimension |
350mm*216mm*350mm |
||||
|
Twice packing dimension |
370mm*460mm*370mm |
||||
|
Twice packing quantity |
2 cases |
||||
|
Packing length |
305±1 m |
||||
|
Rip-cord |
Yes |
||||
|
Ambient temperature |
-20℃～60℃ |
||||
