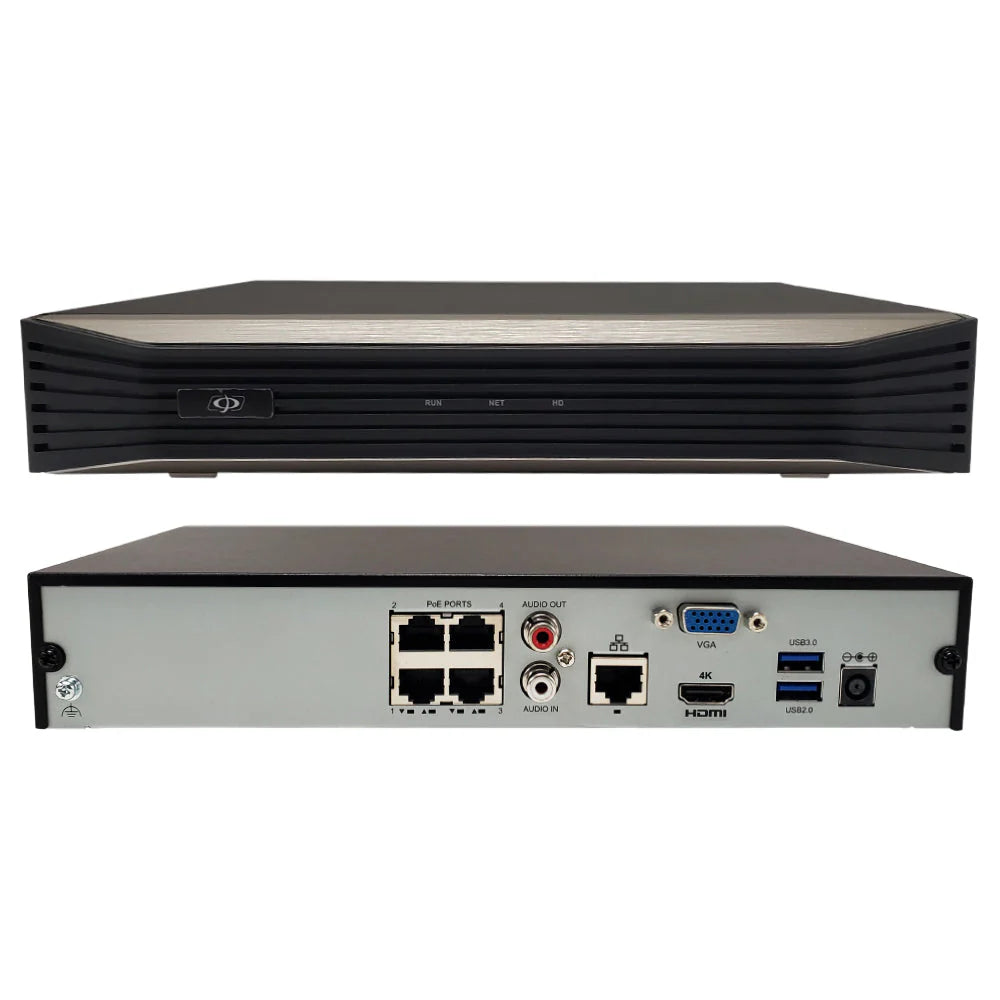

4-Channel IP NVR - 4K 80Mbps - 4x PoE - 1x SATA - 1U
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
OVERVIEW
This 4 channel NVR is a network video recorder. It has 4 built in plug & play PoE ports to make set up simple and easy. With a space for one hard drive with capacity up to 8TB and can support Ultra 265/H.265/H.264 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.
Features
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD up to 8 TB
- Supports cloud upgrade
SPECIFICATIONS
| Physical Characteristics | |
|---|---|
| Dimensions | āĀ¬ 10.2" x 9.4" x 1.9" (āĀ¬ 260 x 240 x 47mm) |
| Operating Temperature | -10Ā°C to 55Ā°C (14Ā°F to 131Ā°F); Humidity ā¤ 90% RH (non-condensing) |
| Power Supply | 48V DC |
| Power Consumption | ā¤ 9W(without hard disks) |
| Video and Audio Input | |
| IP Video Input | 4-channel |
| Two-Way Audio Input | 1-channel, RCA |
| Video and Audio Output | |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-channel, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-channel |
| Liveview Display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Decoding | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30 |
| Hard Disk | |
| SATA | 1 SATA Interface |
| Capacity | Up to 8TB capacity for each HDD (The maximum HDD capacity varies with environment temperature) |
| Smart | |
| VCA Detection By Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking |
| VCA Search | Behavior Search |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP) By Camera | 4-channel |
| General Alarm | |
| Network Interface | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| RS232, RS485, Alarm In, Alarm Out | N/A |
| PoE | |
| Interface | 4 RJ45 10M/100M Self-Adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
| NDAA Compliant | Yes |
| Packaging Information | |
| Package Contents | 1 - NVR 1 - Hard Disk Data Cable 1 - Hard Disk Power Cable 1 - Power Cable 4 - Screws 1 - User Manual |
| Product Weight | 2.20 lbs [1.0 kg] |
