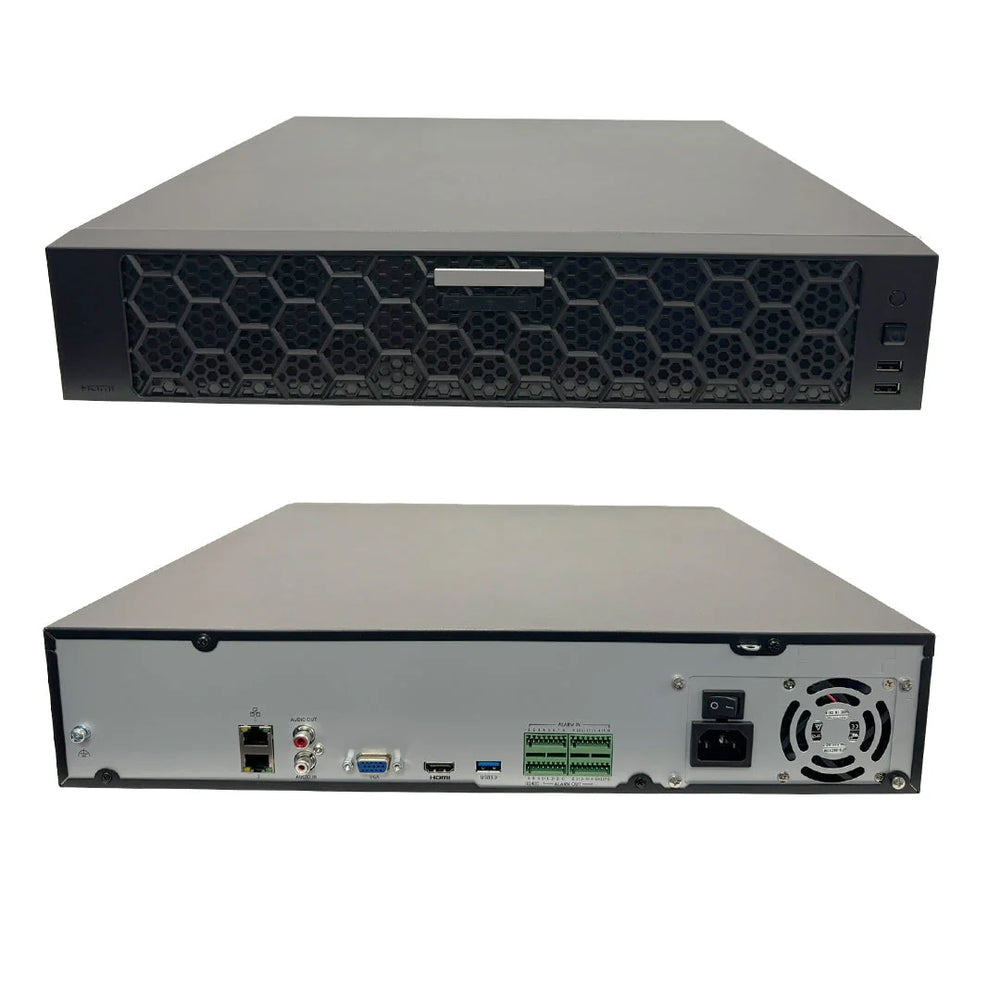

64-Channel IP NVR - 16MP - 4K 320Mbps - 8x SATA
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
OVERVIEW
This 64 channel NVR is a network video recorder that can support up to 16MP IP cameras. With a space for eight hard drives with capacity up to 16TB and can support Ultra 265/H.265/H.264 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.
NOTE: Requires external PoE switch for camera connection (sold separately).
Features
- Support Ultra 265/H.265/H.264 video formats
- 64-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
- VGA and HDMI independent output (simultaneous output by default, independent output configurable)
- Up to 16 Megapixels resolution recording
- 8 SATA HDDs, up to 16TB for each HDD
- Support N+1 Hot spare
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
SPECIFICATIONS
| Physical Characteristics | |
|---|---|
| Dimensions | 442mm Ć 426mm Ć 89mm (17.4" Ć 16.8" Ć 3.5") |
| Operating Temperature | -10Ā°C~+ 55Ā°C (+14Ā°F~+131Ā°F), Humidity ā¤ 90% RH (non-condensing) |
| Power Supply | 100 ~ 240 V AC |
| Power Consumption | ā¤32W (without HDD) |
| Video and Audio Input | |
| IP Video Input | 64-channel |
| Two-Way Audio Input | 1-channel, RCA |
| Video and Audio Output | |
| HDMI/VGA Output |
HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-channel, RCA |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-channel |
| Liveview Display |
Simultaneous Output: VGA: 1/4/6/8/9/16/25/36/64 HDMI: 1/4/6/8/9/16/25/36/64 Independent Output: VGA: 1/4/6/8/9/16/25/32 HDMI: 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1 |
| Hard Disk | |
| SATA | 8 SATA interfaces |
| Capacity | Up to 16TB for each disk |
| Smart | |
| VCA Detection By Camera |
Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera |
All-channel |
| General Alarm | |
| Network Interface | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface |
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In | 16-channel |
| Alarm Out | 4-channel |
| RS232 | N/A |
| RS485 | 1 |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| Packaging Information | |
| Package Contents |
1 - NVR |
| Product Weight | 8.82 lbs [4 kg] |
