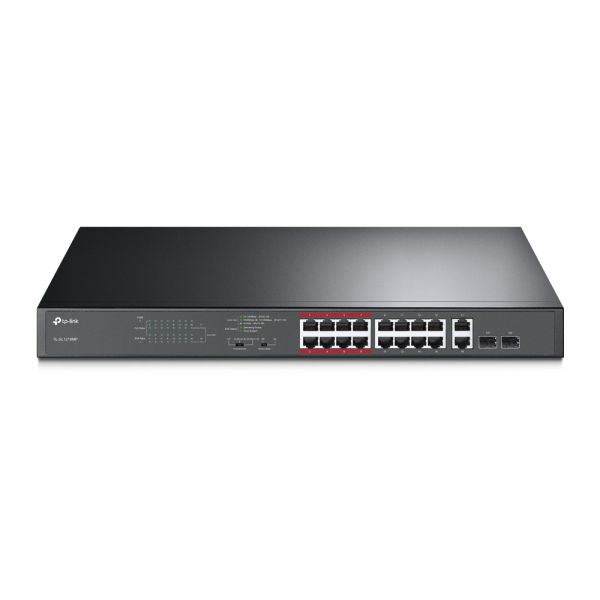

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
ID: TL-SL1218P
Features
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
- High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
Specification
| HARDWARE FEATURES | |
|---|---|
| Interface | • 16× PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 1× Combo Gigabit SFP Slot |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | • 12.7 W (no power device connected) • 172.8 W (with 150W power devices connected) |
| Max Heat Dissipation | • 43.3 BTU/h (no power device connected) • 589.3 BTU/h (with 150W power devices connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SL1218P • Power Cable • Installation Guide • Two mounting brackets |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
