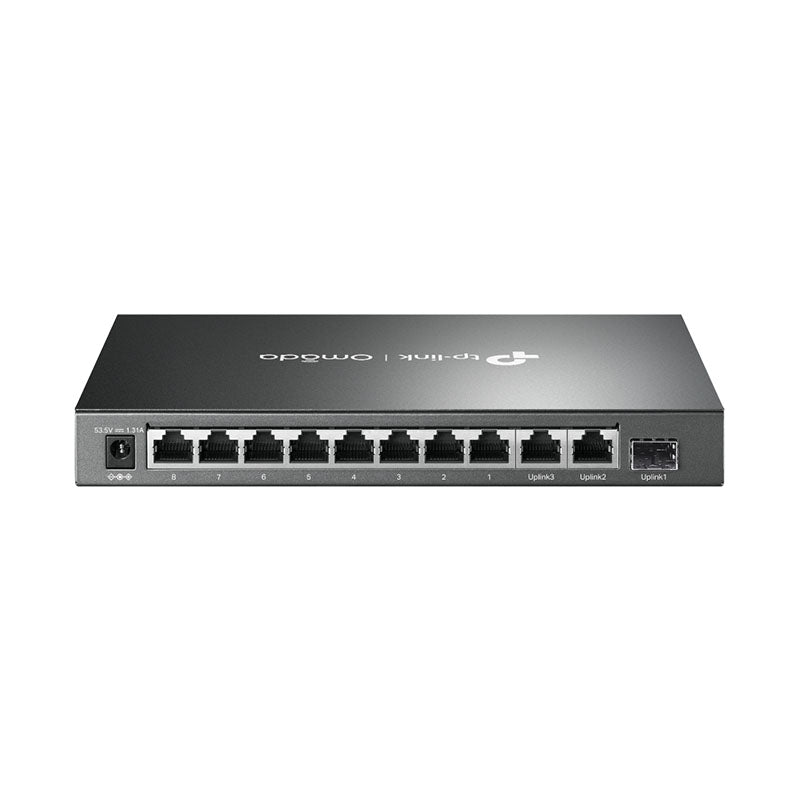

TP-Link DS111P Omada 8-Port 10/100Mbps + 3-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Description:
| HARDWARE FEATURES | |
|---|---|
| Interface | • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 5.6544 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 7.6 Gbps |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | • 5.61 W (220 V/50 Hz. no PD connected) • 77.32 W (110 V/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | • 19.13 BTU/h (no PD connected) • 263.7 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4/1–8** • Isolation Mode: Ports 1–8 • PoE Auto Recovery: Ports 1–8 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • DS111P • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
