Quick-release latch locks/unlocks the display in place
-
Swiveling arm(s) offer(s) maximum viewing flexibility
-
Free-tilting design for multiple TV viewing angles
-
Built-in level adjustment ensures perfect positioning
-
Cable management keep everything organized
Specification
| Product Name: | TV wall mount |
|---|---|
| By Grade: | Economy Series |
| By Function: | Full motion |
| By Mounting Pattern: | Universal |
| Material: | Steel |
| Thickness: | Panel 3mm,Brateck 2mm (Panel 0.10.079"",Brateck 0.079") |
| Pipe Size: | 40X25X1.5mm (1.6"X0.98"X0.059") |
| Surface Finish: | Powder Coating |
| Available Color: | Black |

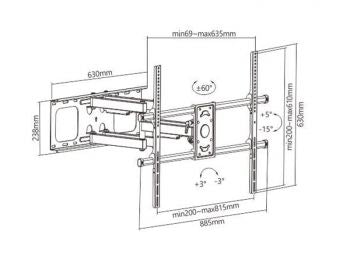

| Product Size With Open Position: | 635X885X630mm (25"X34.8"X24.8") |
| Suggested Screen Size: | 50"-90" |
| Installation: | Solid wall, Double Stud |
| Rated Load: | 75kg (165lbs) |
| Strength tested: | 2 times approved |
| Max.Hole Pattern: | 816*610mm |
| VESA: | 200x200;400x200;300x300;400x400;600x400;800x400;400x300;300x200;800x600 |
| Tilt: | ＋5°～-15° |
| Swivel: | +60°~-60° |
| Level Adjustment: | +3°~-3° |
| Rotating: | NO |
| Profile: | 69-635mm (2.7"-25") |
| Bubble Level: | Yes |
| Anti-theft: | No |
| Cable Management: | Yes |
| Wall separated: | No |
| Panel separated: | Yes |
| AV Component Mount: | No |
| Freely Tilting: | No |
| Freely Height Adjustable: | No |
| Motorized: | No |
| Curved TV Available: | YES |
| Screw Kits Package: | Separate Bag+Ziplock Bag |
| User Manual : | Yes |
