Heavy-Duty TV Ceiling Mount 37-80INCH Dimensions: 1792x650x185mm (70.6 x25.6 x7.3INCH)
Brief Description:

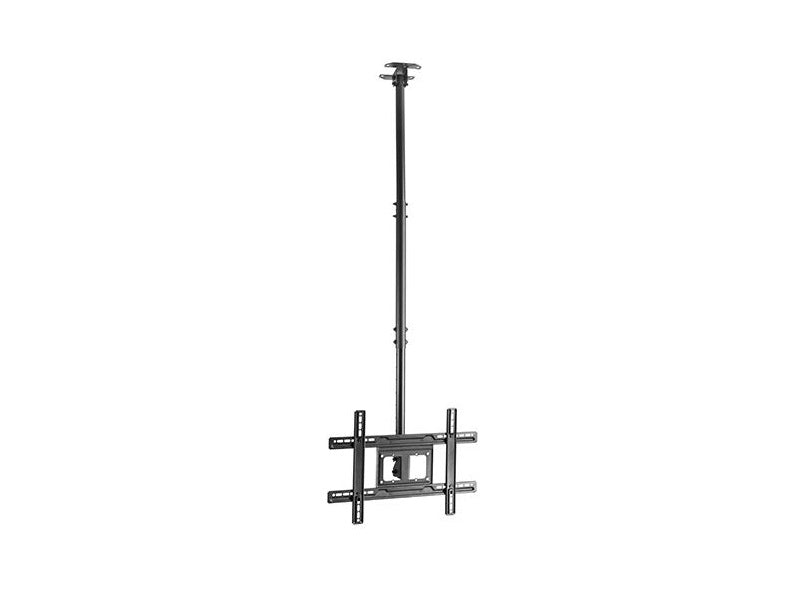

With an attractive price and reliable quality, the PLB-CE1046-01 heavy-duty TV mount offers strong support for commercial mounting. Tilt ceiling plate contributes to the flexibility for applying in the flat and pitched ceiling, special design also allows for single wood stud and roof beam installation. It is effortless to adjust the height by the telescopic design of the pole. The VESA plate can swivel and tilt for the optimal viewing angle. Also, the inside cable management keeps an elegant appearance.
Specification:
| Product Category: | TV Ceiling Mount |
| Rank: | Standard |
| Material: | Steel, Plastic |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |

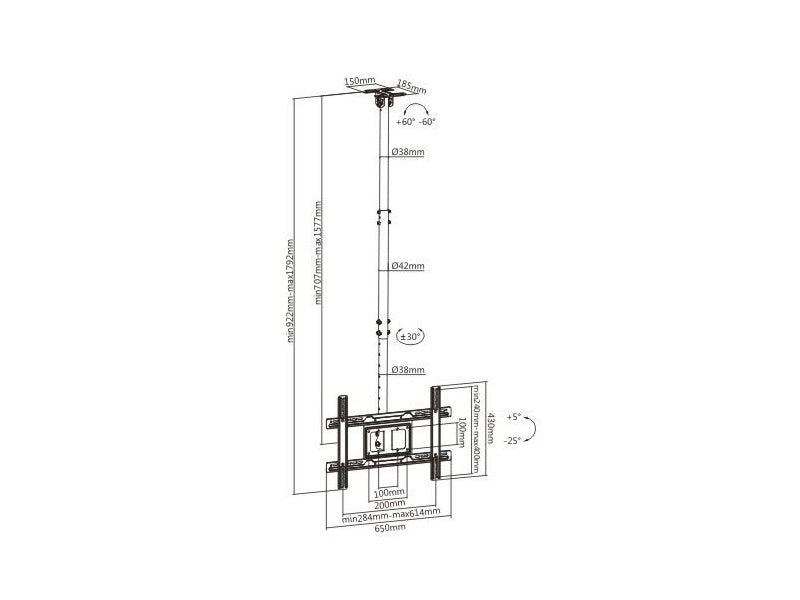

| Dimensions: | 1792x650x185mm (70.6"x25.6"x7.3") |
| Fit Screen Size: | 37"-80" |
| Fit Curved TV: | No |
| Weight Capacity: | 50kg (110lbs) |
| Strength Tested: | 3 Times Approved |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 200x200, 300X200, 300X300, 400x200, 400X300, 400x400, 600x400 |
| Max. VESA: | 614x400mm |
| Panel Type: | Detachable Panel |
| Screen Freely Tilting: | No |

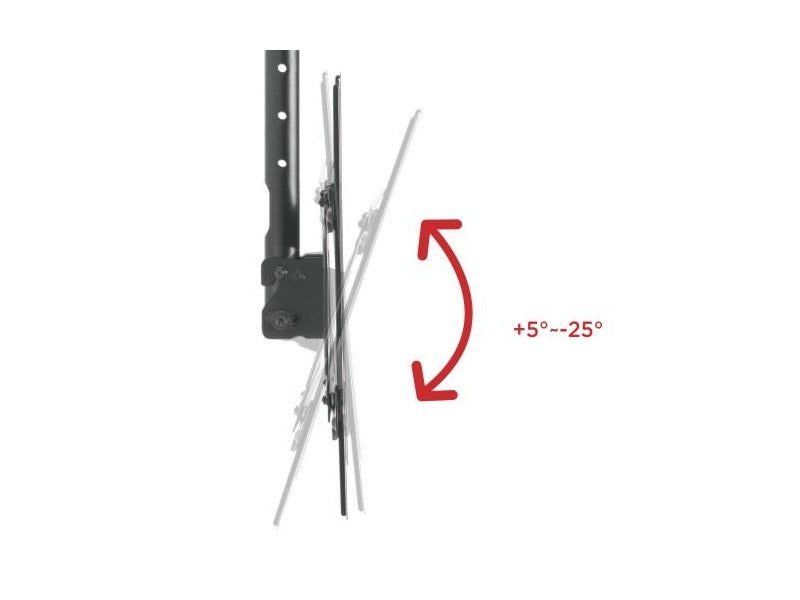

| Tilt Range: | +5°~-25° |

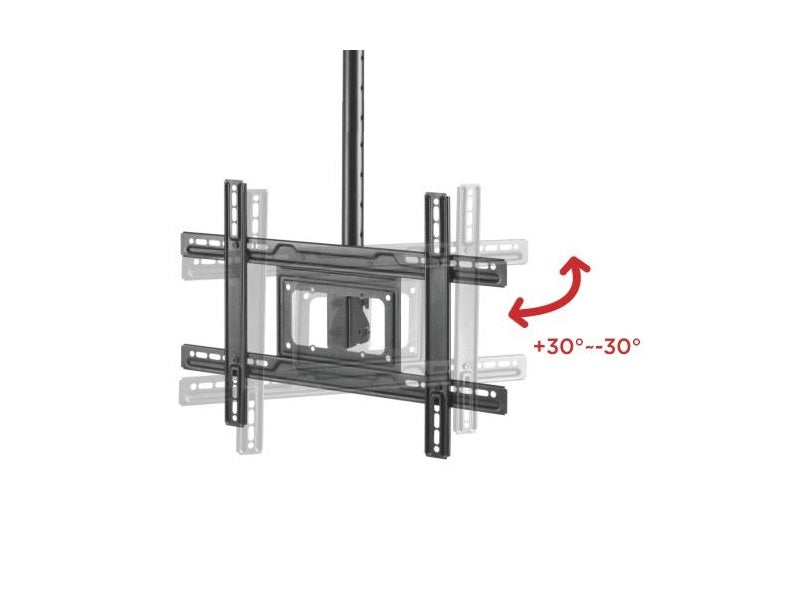

| Swivel Range: | +30°~-30° |
| Profile: | 707~1577mm (27.8"~62.1") |
| Installation: | Solid Wall, Single Stud, Ceiling Mounted |
| Wall Plate Type: | Fixed Wall Plate |
| Freely Height Adjustable: | No |
| AV Component Shelf: | No |
| Direction Indicator: | No |
| Cable Management: | Yes |
| Anti-theft: | No |
| Motorized: | No |
| By Function: | Tilting |
| Bubble Level: | No |
| Accessory Kit Package: | Compartment Polybag |
| Instruction Manual Included: | Yes |
| Power Plug Included: | No |
| Magnetic: | No |
| Lithium Battery: | No |
