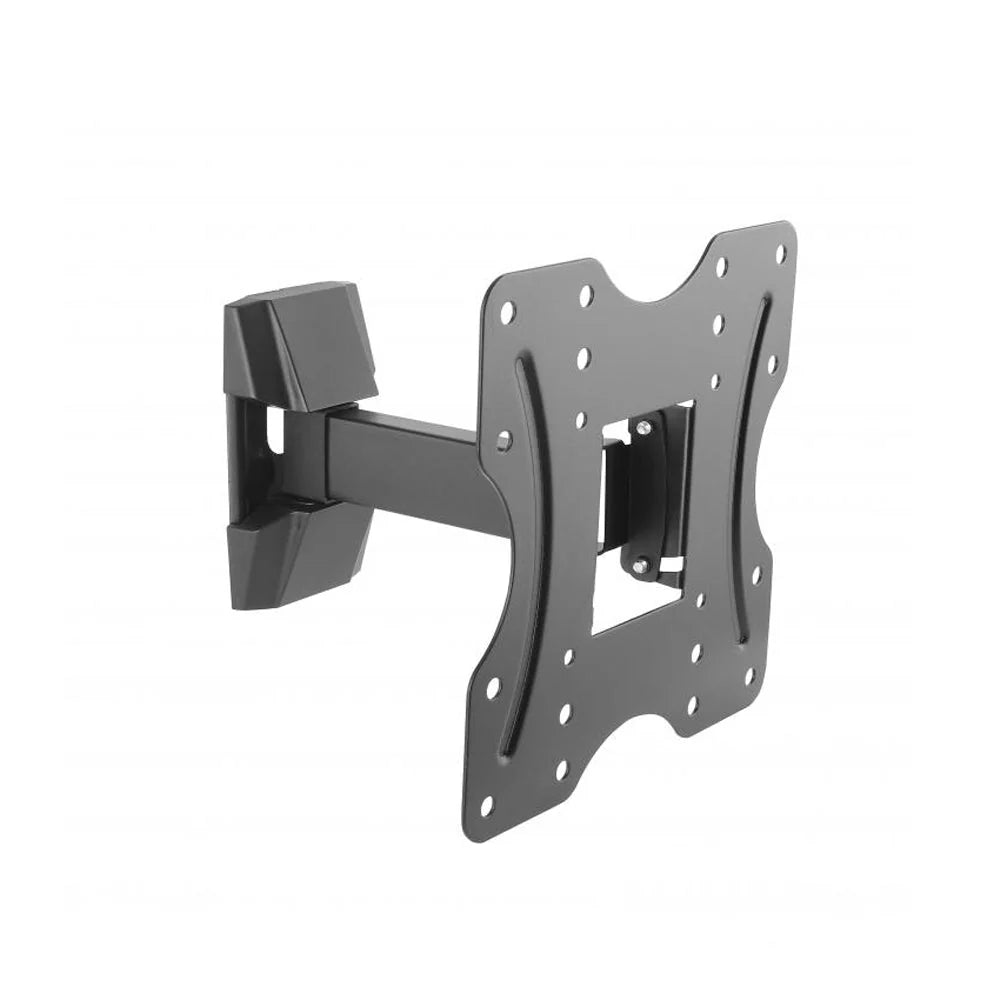

Swivel & Tilt Mount Wall Mount LCD Bracket with Arm - Fits TV Sizes 23-42 inches - Maximum VESA 200x200
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Overview
The tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swiveled to the left or right direction at 90° and tilted at a range of -10° to +3°.
Full Motion Makes any Seat, the Best Seat
The tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swivel to the left or right direction at 90° and tilted at a range of -10° to +3°.
Open Architecture
The open architecture of this mount provides increased ventilation and easier access to wires.
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Mounting Pattern | VESA 100x100, 200x100, 200x200 |
| Metal Sheet Thickness | VESA Panel Thickness =1.8mm [0.071"] cold-rolled sheet Wall Plate Thickness =2.3mm [0.091"] pickling sheet |
| Dimensions | 205 x 230 x 255mm [8.1" x 9.1" x 10"] |
| Screen Size | 23 - 42 inches [58 - 107cm] |
| Weight Capacity | 66lbs [30kg] |
| Tilt | -10° ~ +3° |
| Swivel | -90° ~ +90° |
| Profile | 56 ~ 205mm [2.2" ~ 8.1"] |
| Installation | Solid Wall |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | Included |
| Product Weight | 4.9lbs [2.2kg] |
| Warranty Information | |
| Warranty |
Limited Lifetime |
