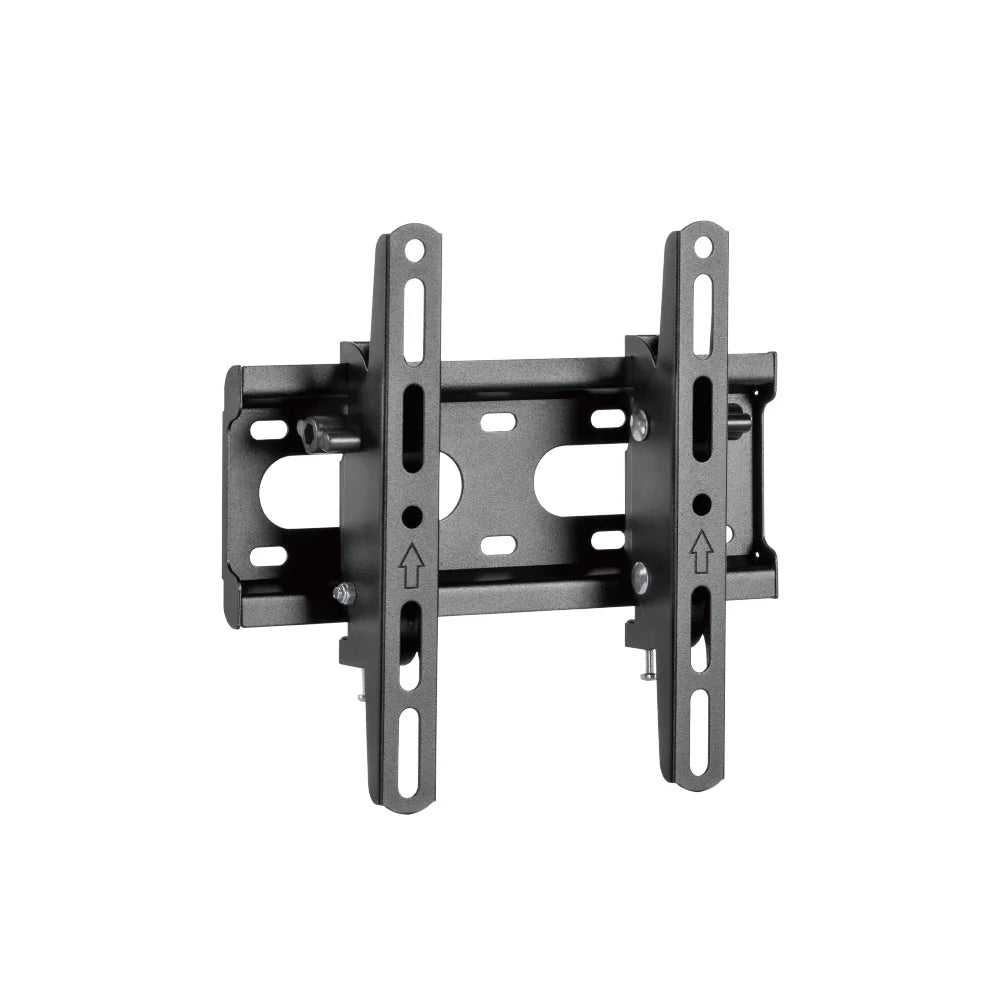

Tilting Mount TV Wall Mount Bracket for Flat and Curved LCD/LEDs - Fits Sizes 23-42 inches - Max VESA 200x200

 Overview

This LCD/LED tilting TV wall mount bracket is designed to hold most 23 inch to 42 inch LCD/LED displays with a maximum VESA hole pattern of 200x200. It offers up to a +12° to -12° tilt. It can be used in both residential and commercial environments.

Easy-Grip Knobs

This TV mount has easy grip knobs which allow for quick tilting and locking.

Convenient Rail Security Screws

This TV mount has security screws that can hold the TV securely to the wall plate.

Easy Installation and Inexpensive

This TV mount with its simple construction, allows for easy installation as a cost-effective solution.

Physical Characteristics Mounting Style Fixed & Tilting TV Wall Mount Color Powder Coated Black Material Steel, Plastic Metal Sheet Thickness Bracket Arm Thickness=1.4mm [0.055 inch] cold-rolled sheet
Wall Plate Thickness=1.4mm [0.055 inch] cold-rolled sheet Dimensions 263 x 223 x 53mm [10.4 x 8.8 x 2.1 inches] Mounting Pattern VESA 75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200 Screen Size 23 - 42 inches [58 - 106cm] Weight Capacity 99 lbs [45kg] Profile 53 mm [2.1 inch] Installation Solid Wall Panel Type Detachable Panel Wall Plate Type Fixed Wall Plate Bubble Level Hook-on Bubble Level (Included in Components Package) Fits Curved TV Yes Tilt Range ＋12°～-12° Direction Indicator Yes Cable Management No Anti-Theft No Approvals RoHS Yes Reach Yes Packaging Information Package Quantity 1 Product Weight 3 lbs [1.36kg]
