Video Wall TV Mount Bracket with Kick-Stand - Fully Adjustable - Fits TV Sizes 45-70 inches - Maximum VESA 600x400
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Overview

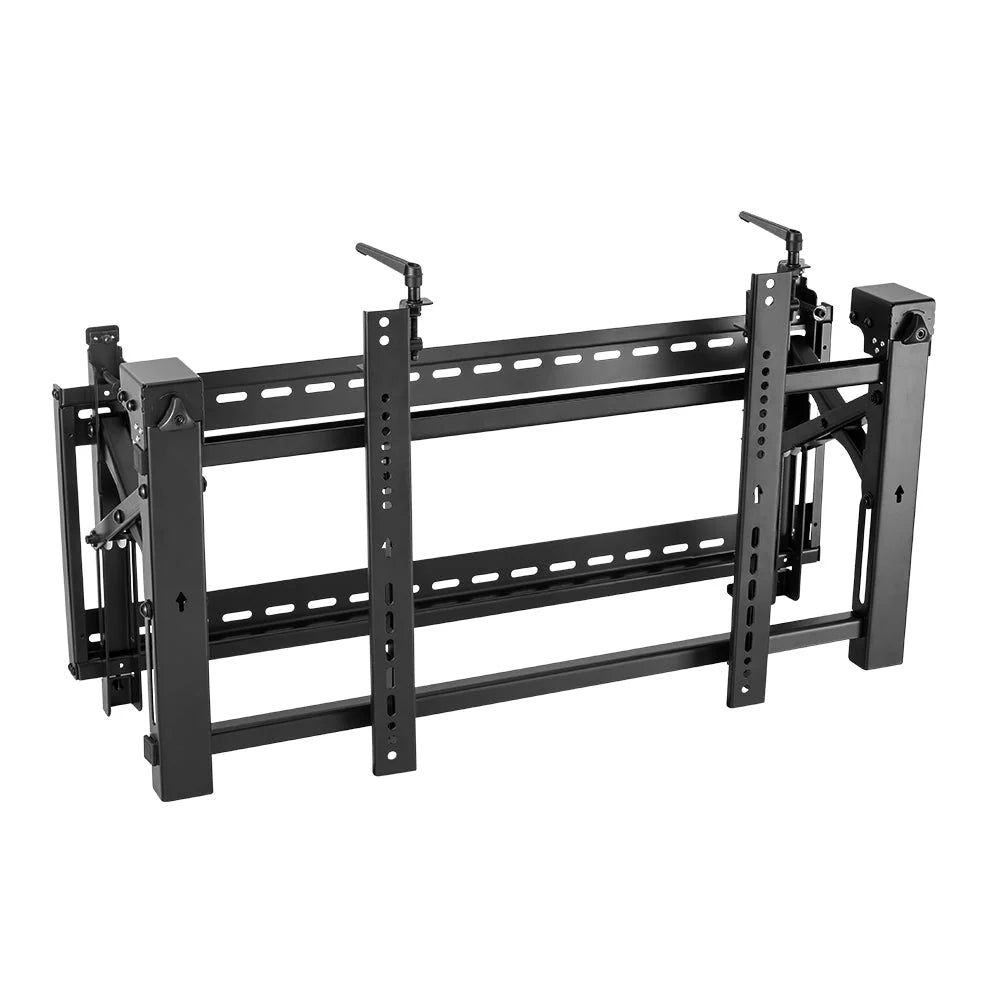

This pop-out video wall mount bracket is designed to hold most 45 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600x400. It allows landscape screen orientation and can be used on a single TV or in conjunction with additional mounts to create a video wall.
Effortless Maintenance and Cable Management
This TV mount bracket has a kickstand that provides 12° of tilt for easy maintenance and cable management.
Pop-Out Extension for Easy Access
There is a pop-out extension function on this bracket that allows easy rear access of the screen.
Display and Level Adjustment is Easy on the Eyes
The micro adjustment on this bracket can be fixed at 6 different points. This allows for an ideal display alignment and level for a pleasurable viewing experience.
Anti-Theft Design
This bracket has an anti-theft design that is ideal for commercial settings (padlock not included).
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Micro Adjustment, Pop-out, Tilting |
| Color | Durable Powder-Coated Black Finish |
| Material | Steel |
| Mounting Pattern | VESA 200X200, 300X300, 400x200, 400x400, 600x400 |
| Screen Size | 45 - 70 inches [114 - 178cm] |
| Weight Capacity | 154lbs [70kg] |
| Profile | 143 ~ 306mm [5.6 ~ 12 inches] |
| Level Adjustment | -5° ~ +3° |
| Tilt |
-5° ~ +3° |
| Installation | Solid Wall |
| Micro Adjustments |
Up/Down 28mm, In/Out 18mm |
| Rear Access |
Kick-out Bottom |
| Anti-Theft | Yes |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x20 Screws 4 - M8x30 Screws 4 - Rectangular Washers 8 - Small Spacers 4 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 33.2 lbs [15.1 kg] |
| Warranty Information | |
| Warranty |
Limited Lifetime |
