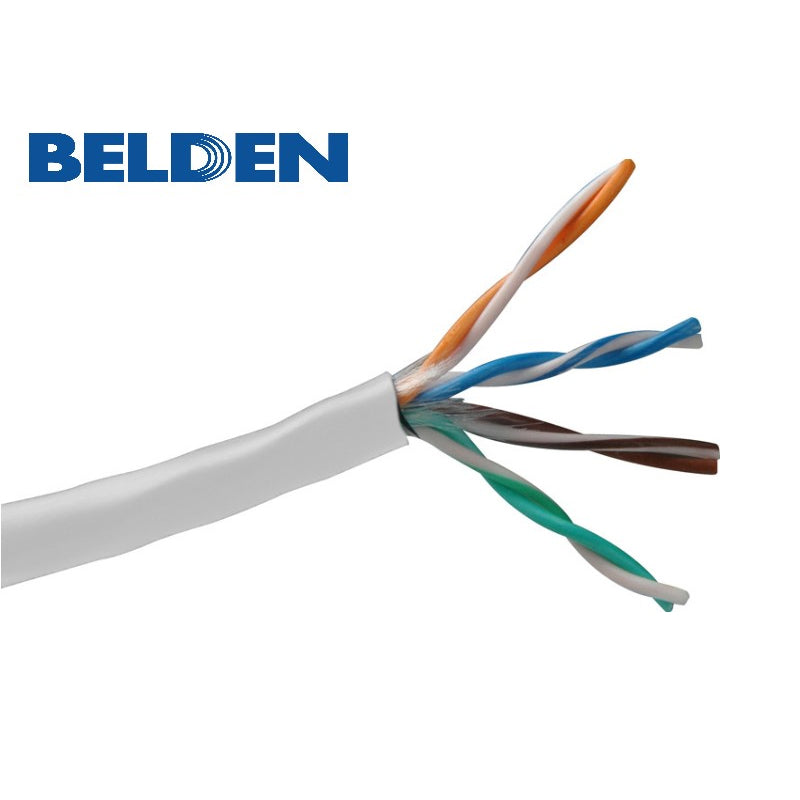

Belden 1583A Cat5e CMR/FT4 24AWG 1000FT Network Cable - White
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Features
- AWG: 24
- Stranding: Solid
- Material: BC - Bare Copper
- Number of Pairs: 4
- Max. Conductor DCR: 93.8 Ohm/km
- Max. DCR Unbalance: 5%
- Max. DCR Unbalanced Between Pairs [%]: 55%
- Max. Capacitance Unbalance: 330 pF/100m
- Nom. Mutual Capacitance: 15 pF/ft
- Frequency Delay [MHz]: 100 MHz
- Max. Delay: 537.6 ns/100m
- Max. Delay Skew: 45 ns/100m
- UL Voltage Rating: 300 V (CMR)
- UL Rating Temp: 75°C
- Operating Temp: -20°C To +75°C
- Installation Temp: 0°C To +50°C
- Storage Temp: -20°C To +75°C
- Max. Pull Tension: 25 lbs
- Bulk Cable Weight: 18 lbs/1000ft
- Environmental Suitability: Riser, Indoor
- Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
- Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
- NEC / UL Compliance: 800, CMR
- CEC / C(UL) Compliance: CMR
- ICEA Compliance: S-90-661-2012
- IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
- NEMA Compliance: NEMA WC-63.1
- Data Category: Category 5e
- TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
- CPR Euroclass: Eca
