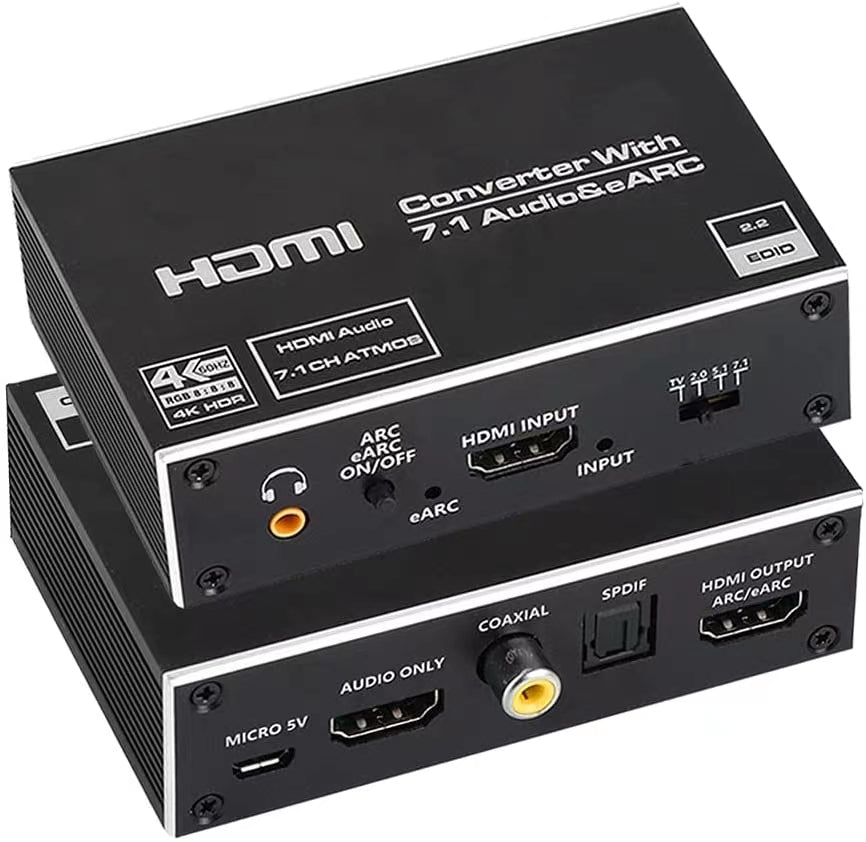

Specifications:
Power Supply: DC 5v/1000mA.
HDMI Output ARC/eARC: TV eARC/ARC audio output port (connect to TV with ARC function).
HDMI Audio Only Port: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.
Toslink SPDIF: LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1.
Coaxial Output: LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1.
3.5mm Audio Jack: Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off the eARC function: Switch to the “ON” position, and the AUDIO ONLY port will output the eARC/ ARC audio; Switch to the “OFF” position, and the AUDIO ONLY port will output the audio from HDMI IN port.
NOTE
1. When you use ARC/eARC Function, please make sure that the spdif port light is red, that means the converter gets a signal. And the TV needs support ARC/eARC Function.
2. When you open the ARC/eARC, then the TV remote will can’t control the volume, you can only adjust the volume on your speaker/sounder/home theater.
