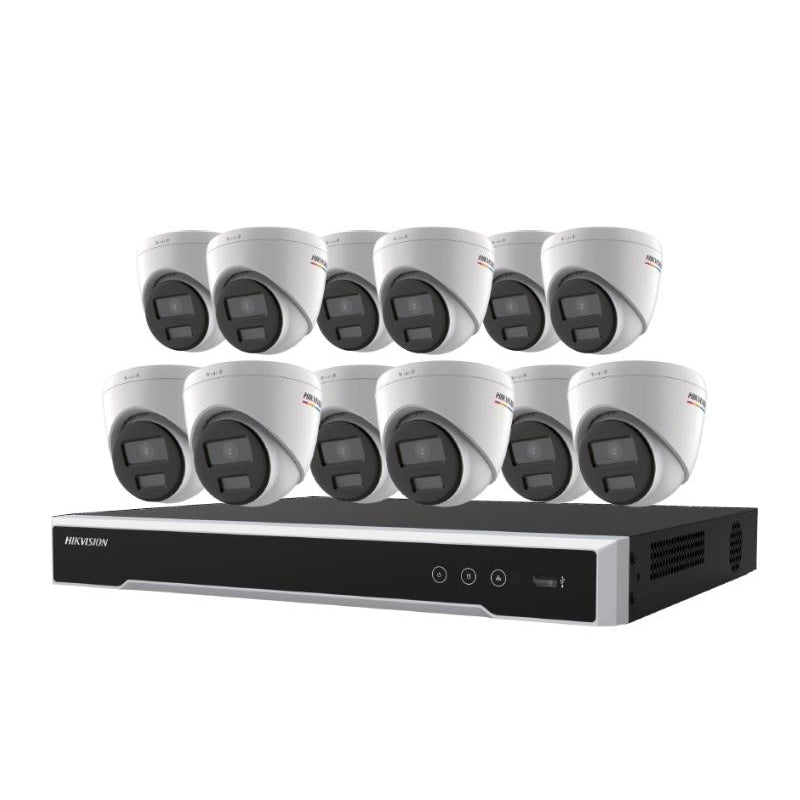

Hikvision EKI-K164T412C 16 Channel 8MP/4K PoE NVR with 4TB HDD & 12 X 4MP ColorVu Night Vision Turret Cameras Kit

$2,831.99

Hurry up! Sales Ends In

Hurry! Only 3 Left in Stock!

Real time 18 visitor right now
DELIVERY & RETURN
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION



-Record from and Manage up to 16 Cameras

-Up to 8MP Recording Resolution

-4TB Preinstalled HDD

-H.265+/H.265/H.264+/H.264 Video Codecs

-16 PoE Ports

-12 4MP 2.8mm ColorVu Turret Cameras Included

-Color Recording at Night up to 98'

-96° Horizontal Field of View

-HDMI and VGA Video Outputs

-IP67-Rated Cameras for Outdoor Use

NVR

Motion Detection
Human/Vehicle Analysis: 4 Channels
Channels
16
Bandwidth
Incoming: 160 Mb/s
Outgoing: 80 Mb/s
HDMI Output Resolution
4096 x 2160 at 30 Hz, 3840 x 2160 at 30 Hz, 2560 x 1440 at 60 Hz, 1920 x 1080 at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz
VGA Output Resolution
1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz
Video Output
HDMI/VGA Simultaneous Output
Audio Output
1-Channel, RCA (Linear, 1 Kilohm)
Two-Way Audio
1-Channel, RCA (2 V p-p, 1 Kilohm)
Decoding Formats
H.265+, H.265, H.264+, H.264
Recording Resolution
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback
16 Channels
Decoding Capability
1 Channel at 8 MP (30 fps)
3 Channels at 4 MP (30 fps)
6 Channels at 1080p (30 fps)
Streaming
Video, Video & Audio
Audio Compression
G.711ulaw, G.711alaw, G.722, G.726
Remote
Remote Connections: 32
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Network Interface
1 x RJ45 1000M Self-Adaptive Ethernet Port
PoE Interface
16 x 100M RJ45 Self-Adaptive Ethernet Ports
PoE Power
≤150 W
PoE Standard
IEEE 802.3af/at
SATA
2 x SATA Interfaces
HDD Capacity
8 TB per HDD
HDD Included
4 TB
Alarm I/O
N/A (4/1 Optional)
USB
2 x USB 2.0
Power Supply
100 to 240 VAC, 50 to 60 Hz
Power Consumption
≤15 W
Operating Temperature
14 to 131°F / -10 to 55°C
Operating Humidity
10 to 90% (Non-Condensing)
Rack Units
1 RU
Dimensions
15.2 x 12.4 x 2" / 385 x 315 x 52 mm
Weight
5.7 lb / ≤2.6 kg (Without HDD)
Camera
Image Sensor
1/3", 4 MP Progressive Scan CMOS
Maximum Resolution
2560 x 1440
Shutter Speed
1/100,000 to 1/3 Seconds
Minimum Illumination
Color: 0.001 Lux (f/1.0 with AGC)
0 Lux with Light
Day/Night
24/7 Color Imaging
3-Axis Adjustment
Horizontal: 0 to 360°
Vertical: 0 to 75°
Rotation: 0 to 360°
Lens
2.8mm
Digital Noise Reduction
3D-DNR
Field of View
Horizontal: 96°
Vertical: 52°
Diagonal: 113°
Lens Mount
M12
Iris
Fixed
Aperture
f/1.0
Depth
Depth of Field: 6.6' to Infinity / 2 m to Infinity
Built-In Microphone
Yes
WDR
120 dB
IR Range
98' / 30 m
IR Wavelength
850 nm
Video Compression
Main Stream: H.265, H.264
Sub-Stream: H.265, H.264, MJPEG
H.264 Profile
Main, High

Main Stream: H.264+
H.265 Profile
Main, High

Main Stream: H.265+
Video Bit Rate
32 kb/s to 16 Mb/s
Alarm Triggers
Basic Event: Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error)
Alarm Linkage
Trigger Recording: Memory Card, Network Storage, Pre-Record and Post-Record
Trigger Captured Pictures Uploading: FTP, HTTP, NAS, Email
Trigger Notification: HTTP, ISAPI, Email
Region of Interest
One Fixed Region for Main Stream and Sub-Stream
Frame Rate
Main Stream: 30 fps at 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720

Sub-Stream: 30 fps at 640 x 480, 640 x 360, 320 x 240
Image Enhancement
BLC, HLC, 3D-DNR
Image Settings
Rotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance
Day/Night Switching
Day, Night, Auto, Scheduled
Network Storage
Supports microSD/SDHC/SDXC Cards up to 128 GB, Local Storage, NAS (NFS, SMB/CIFS), ANR
Network Storage
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Functions
Anti-Flicker, Heartbeat, Mirror, Privacy Masks, Password Reset via Email, Pixel Counter, HTTP Listening
API
ONVIF Profiles G, S & T, ISAPI, SDK, Ehome
Security
Password Protection, Complicated Password, HTTPS Encryption, 802.1x Authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), Watermark, IP Address Filter, Basic and Digest Authentication for HTTP/HTTPS, WSSE and Digest Authentication for ONVIF, TLS1.2
Simultaneous Live View
Up to 6 Channels
User/Host Level
Up to 32 Users at 3 Host Levels (Admin, Operator, User)
Client
iVMS-4200, Hik-Connect, HikCentral
Web Browser
Plug-In Required Live View: Internet Explorer 8+
Plug-In Free Live View: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Communication Interface
1 x RJ45 100M Self-Adaptive Ethernet Port
SVC
H.264/H.265 Encoding
Reset Button
Yes
Operating Temperature
-22 to 140°F / -30 to 60°C
Operating Humidity
0 to 95% (Non-Condensing)
Storage Temperature
-22 to 140°F / -30 to 60°C
Storage Humidity
0 to 95% (Non-Condensing)
Power Supply
12 VDC ≤25%, 0.4 A, 5 W Maximum
PoE (802.3af, Class 3) 36 to 57 V, 0.2 to 0.15 A, 6.5 W Maximum
IP Rating
IP67
Languages
English, Ukrainian
Material of Construction
Metal & Plastic
Dimensions
4.3 x 4.1" / 109.9 x 103.6 mm
Weight
0.9 lb / 420 g
Packaging Info
Package Weight
31.495 lb
Box Dimensions (LxWxH)
19.5 x 19.5 x 17.8"
