42U Fully Assembled Heavy Duty Floor Standing Server Cabinet 1000mm Extra Deep Cabinet with Casters , Brakes, 4 Fans and 2 Fixed shelves
Hurry up! Sales Ends In
Hurry! Only 6 Left in Stock!

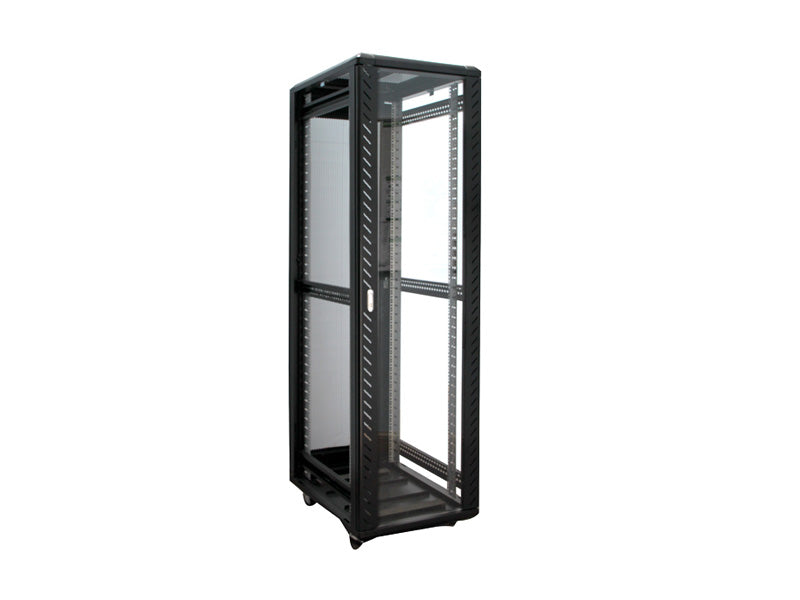

Network Rapid Server Cabinet (42U)
Standard collocation:
- 1 Toughened glass front door
- 1 Vented rear door
- 2 Movable side panel
- 4 Jacking feet
- 4 Castor
- 40 Screw and Nuts (below 32U: 20sets)
- 1 Wrench
- 800mm width with 2 Metal Vertical cable Management
Specification
Main material: | |
Frame: | Aluminum; |
SPCC: | Cold rolled steel; |
Thickness of Steel: | Mounting profile: 2.0mm; Mounting angle: 1.5mm; Others: 1.2mm; |
Surface finish: | Degreasing, pickling, phosphoric, powder coated |
Degree of protection: | IP20 |
Loading capacity: | Static loading: 1000KG |
Specification
Model No. | Capacity (U) |
Width (mm) |
Depth (mm) |
Height (mm) |
Packing Dimension W*D*H |
Volume (CBM) |
EB.6618.90 | 18 | 600 | 600 | 930 | 575*575*125+893.1*680*110+1003.1*680*220 | 0.2582 |
EB.6818.90 | 800 | 575*775*125+893.1*680*110+1003.1*880*220 | 0.3167 | |||
EB.6018.90 | 1000 | 575*975*125+893.1*680*110+1003.1*1080*220 | 0.3752 | |||
EB.6622.90 | 22 | 600 | 600 | 1108 | 575*575*125+1070.9*680*110+1180.9*680*220 | 0.2980 |
EB.6822.90 | 800 | 575*775*125+1070.9*680*110+1180.9*880*220 | 0.3644 | |||
EB.6022.90 | 1000 | 575*975*125+1070.9*680*110+1180.9*1080*220 | 0.4308 | |||
EB.6627.90 | 27 | 600 | 600 | 1330 | 575*575*125+1293.2*680*110+1403.2*680*220 | 0.3479 |
EB.6827.90 | 800 | 575*775*125+1293.2*680*110+1403.2*880*220 | 0.4240 | |||
EB.6027.90 | 1000 | 575*975*125+1293.2*680*110+1403.2*1080*220 | 0.5102 | |||
EB.6632.90 | 32 | 600 | 600 | 1552 | 575*575*125+1515.4*680*110+1625.4*680*220 | 0.3978 |
EB.6832.90 | 800 | 575*775*125+1515.4*680*110+1625.4*880*220 | 0.4477 | |||
EB.6032.90 | 1000 | 575*975*125+1515.4*680*110+1625.4*1080*220 | 0.5696 | |||
EB.6637.90 | 37 | 600 | 600 | 1775 | 575*575*125+1737.7*680*110+1847.7*680*220 | 0.4477 |
EB.6837.90 | 800 | 575*775*125+1737.7*680*110+1847.7*880*220 | 0.5434 | |||
EB.6037.90 | 1000 | 575*975*125+1737.7*680*110+1847.7*1080*220 | 0.6390 | |||
EB.6642.90 | 42 | 600 | 600 | 1995 | 575*575*125+1959.9*680*110+2069.9*680*220 | 0.4976 |
EB.6842.90 | 800 | 575*775*125+1959.9*680*110+2069.9*880*220 | 0.6030 | |||
EB.6042.90 | 1000 | 575*975*125+1959.9*680*110+2069.9*1080*220 | 0.7084 | |||
EB.6647.90 | 47 | 600 | 600 | 2217 | 575*575*125+2182.2*680*110+2292.2*680*220 | 0.5474 |
EB.6847.90 | 800 | 575*775*125+2182.2*680*110+2292.2*680*220 | 0.6627 | |||
EB.6047.90 | 1000 | 575*975*125+2182.2*680*110+2292.2*680*220 | 0.7779 |
