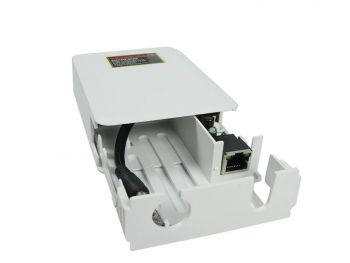

Outdoor PoE Splitter 1 PoE in to RJ45 and 12V 15/30W Power out

       The POE-Splitter isolated step-down splitter is designed for network HD cameras as a power receiving module that complies with the IEEE 802.3af Power over Ethernet standard. Compatible with all power supply equipment supporting IEEE 802.3 series standards and non-standard power supply equipment with the same range of supply voltage. The output is 12V, the maximum power is 12W, and the recommended power is within 12W. It has the functions of automatic identification of power receiving, short circuit automatic protection, overcorrect automatic disconnection, etc.

-Support IEEE 802.3 series protocols to receive power and non-standard 48V above POE equipment
to receive power
-Support 1-2-3-6 and 4-5-7-8 eight cores receive power at the same time
-Built-in dual-channel bridge rectifier, supports positive and negative line
sequence reverse connection
-POEstatus indicator for easy troubleshooting
-Transformer isolation at the input and output terminals, effective antiinterference
and anti-surge, and protect the back-end equipment
-Signal network transformer isolation, more effective anti-interference and
anti-surge function
-Output 12V, it is recommended to use power within 12W

Supported Standards and Protocols:

-IEEE 802.3 Ethernet Media Access
-Control Protocol
-IEEE 802.3i 10BASE-T Ethernet
-IEEE 802.3u 100BASE-TX Fast Ethernet
-IEEE 802.3af implements Power over
-Ethernet devices via Ethernet data line
-pairs or devices
-IEEE 802.3x flow control
