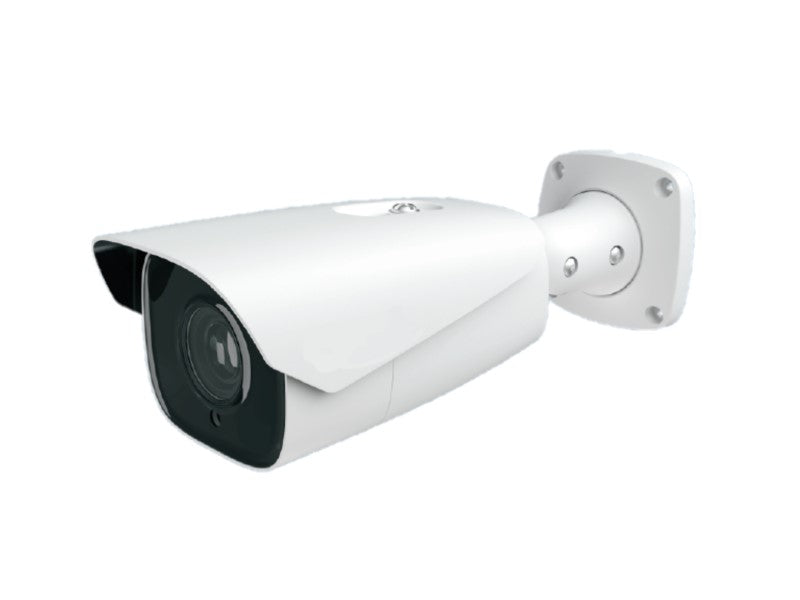

2MP Network T9423A3-LR IR Motorized Bullet Camera With Overview and Cutout of Plate for Picture Function and Built-in MIC and micro SD card slot (up to 256GB)
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Warranty:
Modcom IT Solutions- 2 Year
Features
- Starlight H.265
- 2MP ( 1920 × 1080 ) @30fps
- Support smart H.265/H.264 coding
- ICR auto switch, true day/night
- Up to 100m IR night view distance; motorized zoom lens
- 3D DNR, true WDR, HLC, BLC and ROI coding
- Built-in micro SD card slot, up to 256GB
- 1CH audio input; 1CH audio output
- 1CH alarm input; 1CH alarm output
- DC12V/PoE power supply
- Support three streams
- P2P function optional
- IP67
- Support mobile surveillance by smart phones with iOS and Android OS Intelligent analytics: video abnormality (video blur detection, video color cast detection, scene change), license plate recognition
Specification
| Camera: | |
|
Image Sensor |
1 / 2.8" CMOS |
|
Image Size |
1920 × 1080 |
|
Electronic Shutter |
1 / 25 s ~ 1 / 100000 s |
|
Iris Type |
DC Iris |
|
Min. Illumination |
0.0026 lux@F1.2,AGC ON; 0 lux with IR 0.005 lux@F1.6, AGC ON; 0 lux with iR |
|
Lens |
2.8~12mm@F1.4, motorized |
|
Lens Mount |
Φ14 |
|
Wide Dynamic Range |
120dB |
|
BLC |
Yes |
|
HLC |
Yes |
|
Defog |
Yes |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Image: | |
|
Video Compression |
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
|
Resolution |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
|
Main Stream |
60Hz : 1080P / 720P( 1 ~ 30fps ); |
|
Sub Stream |
720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Third Stream |
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Bit Rate |
64 Kbps ~ 8 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
|
Audio Compression |
G711A / U |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, |
|
ROI |
Each ROI to be configured separately |
| Interfaces: | |
|
Network |
RJ45 |
|
Video Output |
No |
|
Audio |
1CH audio input; 1CH audio output |
|
Storage |
Built-in micro SD card slot; up to 256GB |
|
Reset |
Yes |
|
Alarm |
1CH alarm input; 1CH alarm output |
| Functions: | |
|
Remote Monitoring |
Web browsing,CMS remote control |
|
Online Connection |
Support simultaneous monitoring for up to 10 users; |
|
Network Protocol |
UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage; micro SD card storage |
|
Smart Alarm |
Motion detection, Sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
|
General function |
Watermark, IP address filtering, video mask, heartbeat, password |
|
PoE |
Yes, IEEE802.3af |
|
IR Distance |
50~70m; 70~100m |
|
Protection Grade |
IP67 |
|
LPR |
|
| Snapshot | Overview and cutout of plate for picture |
| Vehicle Plate Database | 10,000 |
| Capture Speed Range | 0~70km/h |
| Others: | |
|
Power Supply |
DC12V/PoE |
|
Power Consumption |
< 11W |
|
Operating Environment |
- 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing) |
|
Dimensions ( mm ) |
279.5 × 100.3 × 88.9 |
|
Weight ( net ) |
Approx. 1.04KG |
|
Installation |
Ceiling mounting; Wall mounting |
