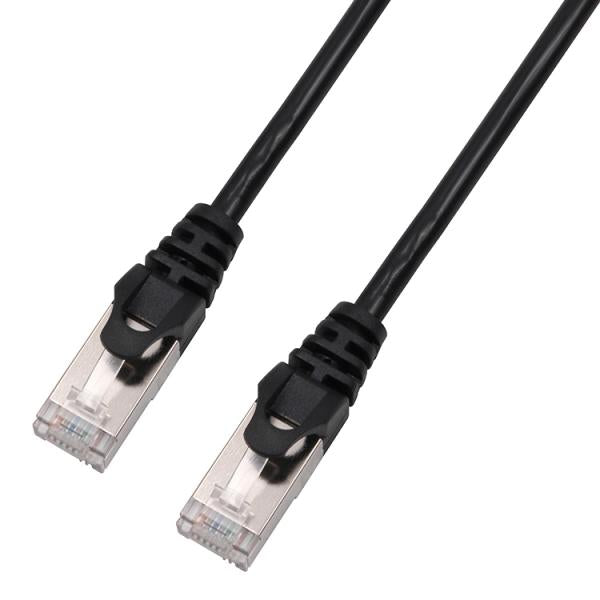

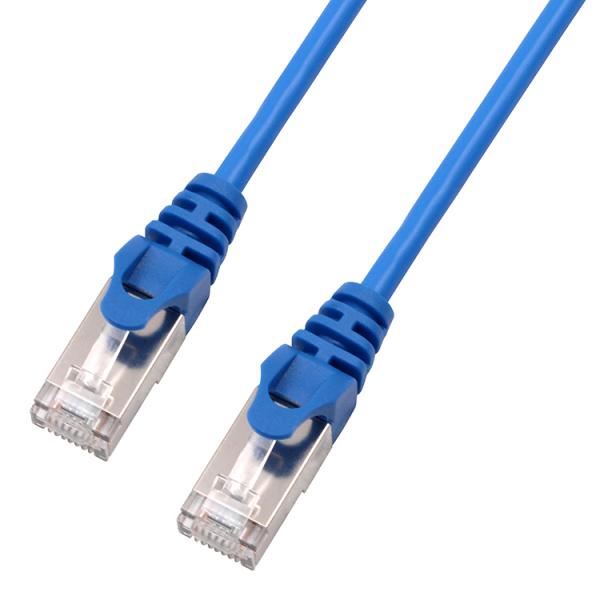

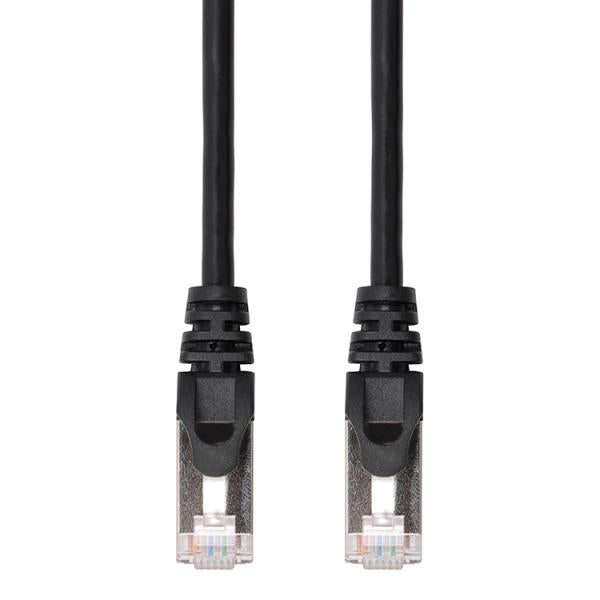

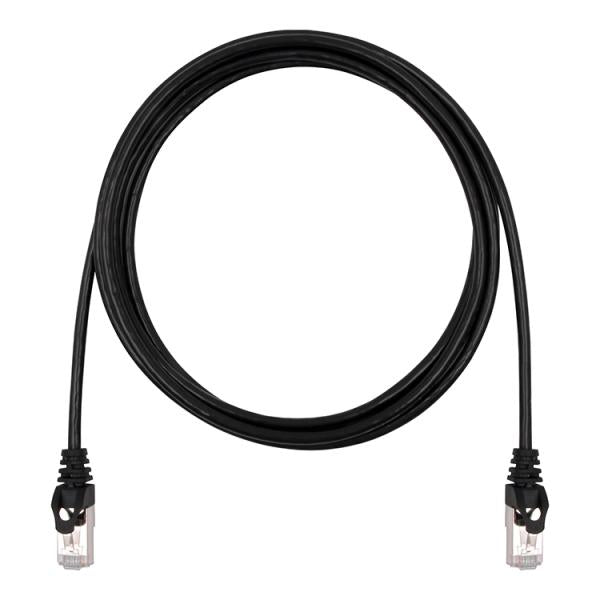

0.5' Ultra Thin Shielded CAT8 (40 GIG) FTP Network Cable w/ Metal Connectors

$12.50

Hurry up! Sales Ends In

Hurry! Only 3 Left in Stock!

Real time 11 visitor right now
Blue
Black
White
DELIVERY & RETURN
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION
CAT8 Shielded network cables transmit at up to 40 Gbit/s

Ultra Thin High Speed Cat8 LAN Network RJ45 Cable

30 AWG Pure Copper Conductors

PVC Jacket

Max data rate: Up to 40Gbps

F/FTP Overall Foil and Individually Foil Shielded Pairs

Overview:
- Bandwidth: 2000MHz
- OD: 4.5mm
- Conductor: 30AWG (7/0.10), Stranded Bare Copper
- Approvals: RoHS
- Connector: 50u" Gold Plated RJ45 Connector

Physical Characteristics:
- Cable Type: Cat8 F/FTP
- Connector Type: RJ45
- Wiring Scheme: T568B
- Temperature Rating: -20C - +75C
- Voltage Rating: 30V
- CAT8 S/FTP [1P/24AWG(7*0.20BC)+AL)*4 + BRAID (16*8/0.12AL-MG)

Conductor (4 Twisted Pair):
- Conductor Type: 30AWG (7/0.10), Stranded Bare Copper
- Insulation: FOPE
- Diameter: 0.75+-0.05mm

Connector Type:
- Connector Type: Shielded 8P8C RJ45 Male
- Connector Material: PC
- Contact Material: Copper Alloy with 50um Gold Plating
- Connector Shield: Shielded Nickel Plating
- Hood Material: PVC Molded Boot

Overall Cable:
- Jacket: PVC
- Minimum Average Thickness: 0.65mm
- Outer Diameter: 4.5 +- 0.15mm

Electrical Characteristics:
- Conductor DC Resistance: 38.5Ohm/100m (Maximum)
- Impedance: 100Ohm
- Capacitance: 5600pf/100m
- Propagation Delay: 545ns/100m (Maximum)
- Delay Skew: 45ns/100m (Maximum)
- Pass FLUKE DSX 8000 Channel Test (100% Test)

Cable Markings:
25/40GBase-T CATEGORY 8 F/FTP PATCH CABLE 30AWG 4PAIRS ANSI/TIA-568.2-D
