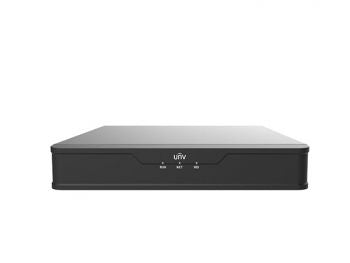

Uniview NVR501-08B-P8 8 Channel 4K NVR with 8 PoE Ports

Model

NVR301-08X-P8

Video/Audio Input

IP Video Input

8-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

80Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

Browser

IE(IE10/11) for Windows

Firefox (version 52.0 and above) for Windows

Chrome(version 45 and above) for Windows

Edge(version 79 and above) for Windows

Video/Audio Output

HDMI/VGA Output

HDMI:

3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Audio Compression

G.711A, G.711U

Synchronous Playback

8-ch

Liveview display

1/4/6/8/9

Corridor Mode Screen

3/4/5/7/9

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot, up to D1 resolution

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30

Hard Disk

SATA

1 SATA interface

Capacity

Up to 8TB for each disk

(The maximum HDD capacity varies with environment temperature)

Smart

VCA Detection by Camera

Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking

VCA Search

Behavior Search

People counting

People Flow Counting, Crowd Density Monitoring

Smart Intrusion Prevention (SIP) by Camera

8-ch

General Alarm

General Alarm

Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0,1 x USB3.0

RS232

NA

RS485

NA

Alarm In

NA

Alarm Out

NA

PoE

Interface

8 RJ45 10M/100M self-adaptive Ethernet Interface

Max Power

Max 30W for single port

Max 75W in total

Supported Standard

IEEE 802.3at, IEEE 802.3af

General

Power Supply

52V DC

Power Consumption: ≤8 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")

Weight (without HDD)

≤1kg (2.20 lb)

Certification

Certification

CE, FCC, UL, RoHS, WEEE

CE

EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017

FCC

Part15 Subpart B, ANSI C63.4
