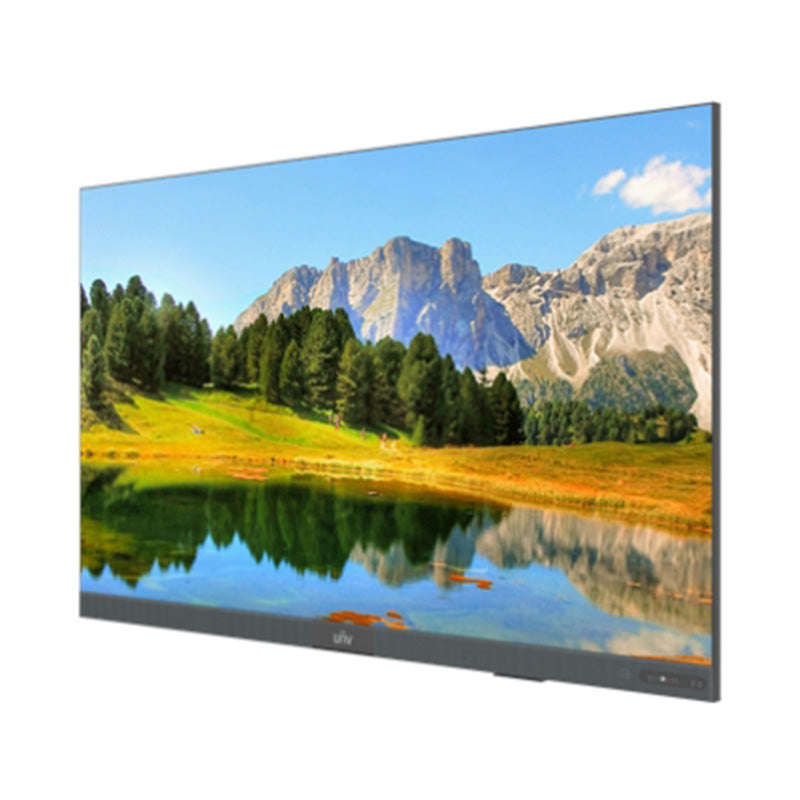

UNV MW72T-135H-CW 135-Inch All-in-One LED Display | Ultra HD Conference & Commercial Display Solution

-Utilizes flip‑chip COB technology, no need for wire bonding, high light efficiency, greener and more energy‑efficient.

-High refresh rate, fast frame update speed, no ghosting or motion blur.

-High brightness and contrast, excellent visual experience.

-2‑channel audio system, maintains stereo effects while enhancing low‑frequency performance, providing better presence and sound quality.

-Plug‑&‑play Wi‑Fi module, easier maintenance.

-Hidden Wi‑Fi antenna, more attractive design.

-Compatible with both long and short OPS computers.

-Supports screen mirroring via NFC on Android phones; simply tap the mobile phone to mirror the screen.

-Enables remote control for power on/off, screen switching, and menu settings.

-Uses front lock connection plates for leveling, easier installation.

-Both module boards and the OPS computer support front maintenance, no maintenance channel required.

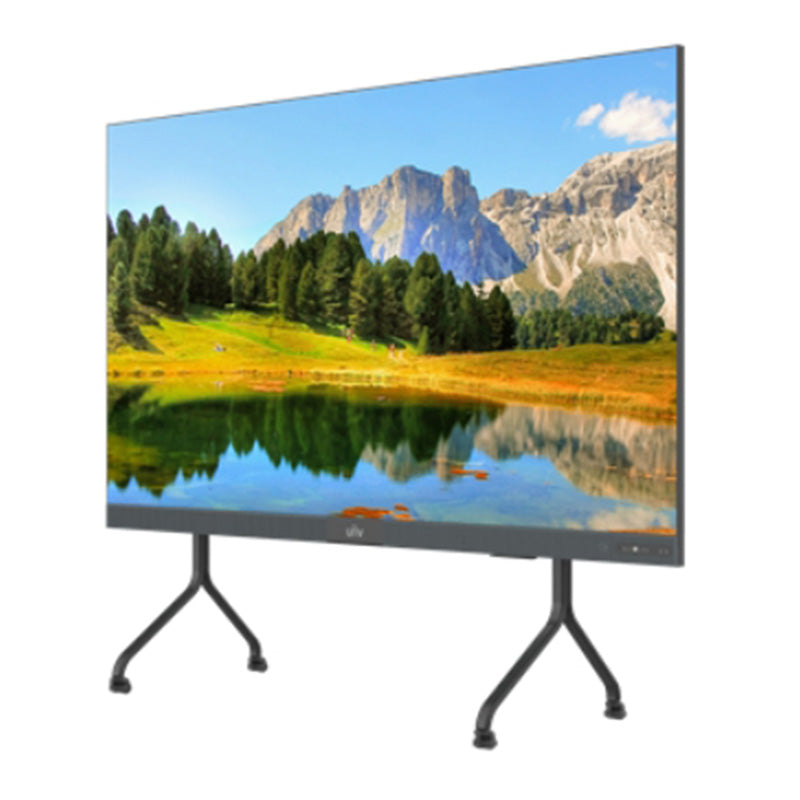

Three adjustable stand heights: 600 mm, 700 mm, and 800 mm.

Model MW72T‑135H‑CW/MW72T‑135H‑C Module Pixel Pitch 1.56 Cabinet Display Resolution (W × H)(mm) 1920 × 1080 Display Size  (W × H)(mm) 3000.0 × 1687.5 Processing Image Brightness (nits) 600 Viewing Angle (H/V) 160°/160 Contrast Ratio 20000:1 Color Temperature (K) 6500 Processing performance Grayscale (bit) 14 Refresh Rate (Hz) 3840 System CPU Cortex‑A55 GPU Mali‑G52 RAM 4 GB ROM 32 GB Operation System Android 11.0 Interface Input Interface 1 × HDMI (max. 2048 × 1152@60 Hz) Output Interface 1 × HDMI 1 × Line out 1 × SPDIF Other Interfaces 4 × USB 2.0 1 × RS 232 Network 1 Gigabit network interface, RJ45, device management interface 10M/100M/1000M Base‑T adaptive. OPS 1, 90 W Speaker 15 W × 2 Bluetooth 5.2 Wi‑Fi Dual Wi‑Fi module AP: 1 × Wi‑Fi 5, supports 2.4GHz/5GHz Station: 1 × Wi‑Fi 6, supports 2.4GHz/5GHz Electrical Power Supply AC 100‑240 V; 50 Hz/60 Hz Maximum Power Consumption (W) 1560 Average Power Consumption (W) 600 Standby Power Consumption (W) 0.6 General Product Dimensions (W × H × D) (mm) 3014.0 × 1811.2 × 63.9 (excluding square steel) 3014.0 × 1811.2 × 103.9 (including square steel) Weight (kg) Net weight: 160 (To Be Determined) Gross weight: 180 (To Be Determined) Operating Temperature ‑10°C to 40°C Operating Humidity 10% to 80% RH (non‑condensing) Storage Temperature ‑20°C to 60°C Storage Humidity 10% to 85% RH (non‑condensing) Certifications CE/FCC/CB Standard 1 × power cable (10 m), 1 × remote control, 1 × quick guide, 1 × wireless screen sharing dongle, 1 × vacuum sucker, 1 × level instrument, 1 × OPS installation accessories,  1 × wall mount square steel
