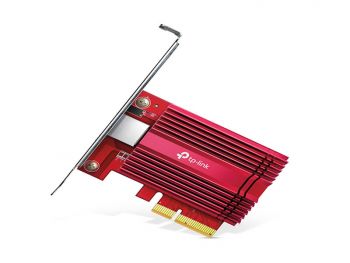

10 Gigabit PCI Express Network Adapter
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Features
-10 Gbps Networking - Combined with the latest 10GBase-T
Technology,TX401 delivers extreme speeds of up to 10 Gbps,
which is 10× faster than typical Gigabit adapters,
guaranteeing smooth data transmissions for both internet
access and local data transmissions.
-Versatile Compatibility - With extreme speed and ultra-low
latency,10GBase-T is backwards compatible with Fast Ethernet
and Gigabit Ethernet, automatically negotiating between
higher and lower speed connections.
-CAT6A Ethernet Cable - To maximize TX401's performance,
a 1.5 m CAT6A Ethernet Cable is included—rated for up to
10 Gbps while a regular cable is only rated for 1 Gbps.
-Low-Profile and Full-Height Brackets - In addition to
the standard bracket, a low-profile bracket is provided
for mini tower computer cases. Customized options give
you the flexibility to find a bracket that perfectly
fits your board design.
-Comprehensive System Support - Fully compatible with
Windows 11/10/8.1/8/7, Windows Servers 2019/2016/2012 R2,
and Linux to meet your diverse operating system needs.
Specification
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, IEEE802.3az, IEEE 802.3x |
| Interface | 1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port |
| Network Media | 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX |
| LED | 10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act |
| Data Rates | 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode, 200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode |
| Dimensions | 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in) |
| Flow Control | 802.3x |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 10 Gigabit PCIe Network Adapter (TX401) Standard/Low-Profile Brackets Quick Installation Guide Resource CD 1.5 m CAT6A Ethernet Cable |
| System Requirements | Windows 11/10/8.1/8/7, Windows Servers 2019/2016/ 2012 R2, Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
