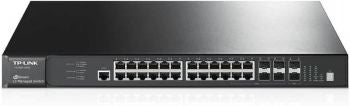

TP-LINK T3700G-28TQ TP-Link Jetstream 28-Port Gigabit L3 Managed Switch
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Features
- Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network
- True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy
- 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery
- Removable power unit and redundant power supply functionality minimizes downtime
- PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments
Specification
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports |
| (Auto Negotiation/Auto MDI/MDIX) | |
| 4 combo gigabit SFP Slots | |
| Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots) | |
| 1 Console Port | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) | |
| 100BASE-FX: MMF, SMF | |
| 1000BASE-X: MMF, SMF | |
| 10GBASE-LR | |
| 10GBASE-SR | |
| Fan Quantity | 4 |
| Physical Security Lock | No |
| Power Supply | 100~240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 17.32*13*1.73 in.(440*330*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 63W (220V/50Hz) |
| Max Heat Dissipation | 214.96 BTU/h |
| PHYSICAL STACKING | |
| Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables | TXM431-SR |
| TXM431-LR | |
| TXC432-CU1M | |
| TXC432-CU3M | |
| Max Number of Stacking Ports Installable | 2 SFP+ |
| Stacking Speed (Per Port) | 20 Gbps (Full-Duplex) |
| No. of Units Per Stack | 8 |
| PERFORMANCE | |
| Switching Capacity | Up to 128Gbps for a standalone switch |
| Bandwidth/Backplane | Up to 320Gbps when 8 units in the stack |
| Packet Forwarding Rate | Up to 95.2Mpps for a standalone switch |
| MAC Address Table | 32K |
| Packet Buffer Memory | 16 Mbits |
| Jumbo Frame | 10K Bytes |
| Number of Routes | 12K |
| Number of Static Routes | 256 |
| Number of IP Interfaces | 128 |
| SOFTWARE FEATURES | |
| Quality of Service | Support 802.1p CoS/DSCP priority |
| Support 8 priority queues | |
| Queue scheduling: SP, WRR, SP+WRR | |
| Port/Flow- based Rate Limiting | |
| Voice VLAN | |
| L2 Features | IGMP Snooping V1/V2/V3 |
| 802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group) | |
| Spanning Tree STP/RSTP/MSTP | |
| BPDU Filtering/Guard | |
| TC/Root Protect | |
| Loop back detection | |
| 802.3x Flow Control | |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
| IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP | |
| Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID |
| Time Range Based | |
| Security | IP-MAC-Port-VID Binding |
| IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN | |
| DoS Defence | |
| Dynamic ARP inspection (DAI) | |
| SSH v1/v2 | |
| SSL v2/v3/TLSv1 | |
| Port Security | |
| Broadcast/Multicast/Unknown-unicast Storm Control | |
| L3 Features | Wire-speed IP forwarding |
| Static Routing | |
| RIP v1, v2 | |
| OSPF v2 | |
| ECMP | |
| PIM-SM/PIM-DM/IGMP | |
| DHCP Server/Relay | |
| ARP Proxy | |
| VRRP | |
| Management | Web-based GUI and CLI management |
| SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs | |
| RMON (1, 2, 3, 9 groups) | |
| DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 | |
| CPU Monitoring | |
| Port Mirroring | |
| Time Setting: SNTP | |
| Integrated NDP/NTDP feature | |
| Firmware Upgrade: TFTP & Web | |
| System Diagnose: VCT | |
| SYSLOG & Public MIBS | |
| Dual Image | |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
