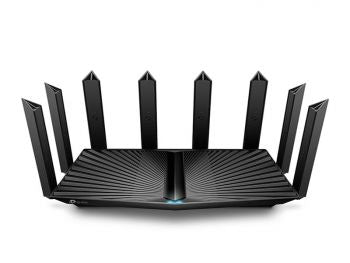

AX7800 Tri-Band 8-Stream Wi-Fi 6 Router
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Features
- Faster Tri-Band AX7800 WiFi 6: Up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps)
Specification
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | •AX7800 • 5 GHz-1: 4804 Mbps (802.11ax, HE160) • 5 GHz-2: 2402 Mbps (802.11ax) • 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity |
Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | 1.7 GHz Quad-Core CPU |
| Ethernet Ports | • 1× 2.5 Gbps WAN/LAN Port • 1× 1 Gbps WAN/LAN Port • 3× 1 Gbps LAN Ports |
| USB Support | • 1× USB 3.0 Port • 1× USB 2.0 Port • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Buttons | • LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button |
| Power | 12 V ⎓ 3.3 A |
| SECURITY | |
|---|---|
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN • PPTP • L2TP |
| VPN Client | • OpenVPN • PPTP • L2TP |
| SOFTWARE | |
|---|---|
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | • FCC: ≤30dBm (5.17GHz~5.25GHz); ≤23dBm (5.25GHz~5.35GHz); ≤23dBm (5.49GHz~5.725GHz); ≤28dBm (5.725GHz~5.825GHz); ≤28dBm (2.4GHz) • CE: ≤23dBm EIRP (5.17GHz~5.35GHz); ≤30dBm EIRP (5.47GHz~5.725GHz); ≤20dBm EIRP (2.4GHz) |
| WiFi Reception Sensitivity | • 2.4 GHz: 11ac VHT20 MCS0: -98dBm, 11ac VHT20 MCS11: -66dBm, 11ac VHT40 MCS0: -96dBm, 11ac VHT40 MCS11: -64dBm, 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -62dBm • 5 GHz: 11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS11: -63dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -61dBm, 11ac VHT80 MCS0: -89dBm, 11ac VHT80 MCS11: -58dBm, 11ac VHT160 MCS0: -84dBm, 11ac VHT160 MCS11: -53dBm, 11ax HE20 MCS0: -92dBm, 11ax HE20 MCS11: -60dBm, 11ax HE40 MCS0: -89dBm, 11ax HE40 MCS11: -58dBm, 11ax HE80 MCS0: -86dBm, 11ax HE80 MCS11: -55dBm, 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm) |
| Package Contents | • Wi-Fi Router Archer AX95 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
